Robotic Morphing Skin with Multimodal Actuation based on Electroosmotic Pumps
2024-2025
In nature, morphable skins play vital roles for many organisms, whether in the color-changing skin of chameleons for camouflage or the shape-changing skin of octopuses that assists movement by propulsion or suction force. Inspired by these biological systems, we present a robotic morphing skin-like platform that integrates multiple, multimodal actuation using flexible electroosmotic pumps (EOPs) as lightweight and self-contained fluidic actuators. We introduce the architecture of the platform and its versatile design space for multimodal actuation in force, shape, optical, and weight domains. We demonstrate interactive and robotic applications that integrate multiple actuators working collectively within a single device, including grippers with dynamic contact conditions, multifunctional soft robots, multimodal wearables, and multimodal tangible displays.
Download Media Package
Tianyu Yu, Peisheng He, Bob Tianqi Wei, Chenyuheng Wang, Xueqing Li, Xuezhu Wang, Yao Lu, Wei Yue, Megan Teng, Zihan Wang, Liwei Lin, Haipeng Mi, Qi Lu, Lining Yao. MorphingSkin: A Skin-like Platform that Integrates Multimodal Hydraulic Actuators Based on Flexible Electroosmotic Pumps. In ACM User Interface Software and Technology Symposium (UIST). 2025. PDF | DOI
Tianyu Yu, Hajun Lee, Lining Yao. BiEOP: A Bistable, Soft Actuator Driven by Electroosmotic Pumps. In IEEE International Conference on Soft Robotics (RoboSoft). 2026. PDF
🏆 UIST Best Paper Award
🏆 RoboSoft Best Student Paper Award
🏅 RoboSoft Young Research Paper Finalist
🏅 RoboSoft ZooQuarium (Demo) Finalist
MorphingSkin Overview
MorphingSkin is a skin-like platform that integrates multiple, multimodal hydraulic actuators using flexible electroosmotic pumps (EOPs) as lightweight and self-contained fluidic actuators. As fluid has enabled multimodal physical dynamics in nature—changing body shape or appearance, or transmitting nutrients—for millions of years, we explored the multimodal actuation capabilities of MorphingSkin in force, shape, optical, and weight domains, and envision the technique as a candidate for future computing devices with interactive surfaces. We then demonstrated applications through various fields, including robotic skins, multimodal wearables, and tangible displays.
MorphingSkin Composition

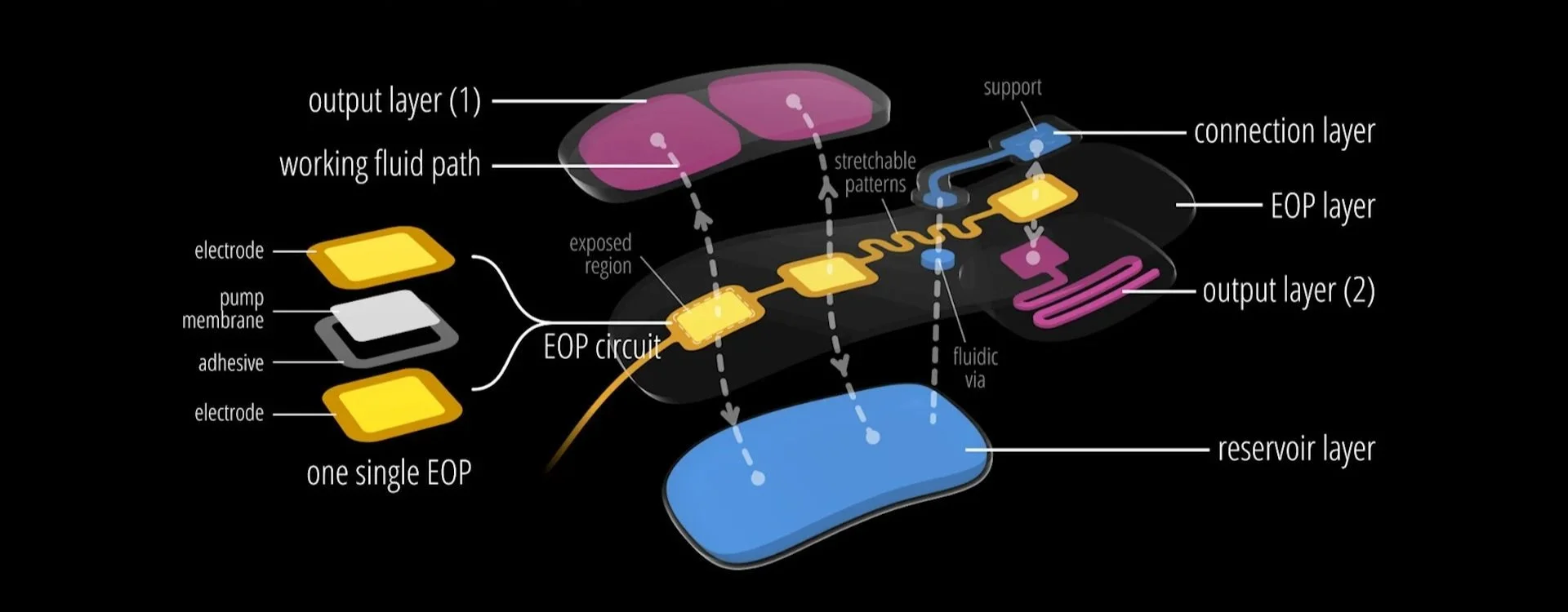

Morning skin composition is centered with a flexible EOP circuit. The circuit is designed using flexible printed circuits and adopts stretchable patterns. The circuit is then coated with a layer of stretchable material, such as silicone, to form a continuous, stretchable middle layer. Next, different elastic shells are designed and bonded on both sides of the middle layer, to serve different functions, such as output actuators, or reservoirs. Lastly, working fluid is enclosed inside, pumped by the EOPs across different layers to output actuation.
Multimodal Actuation Design Space

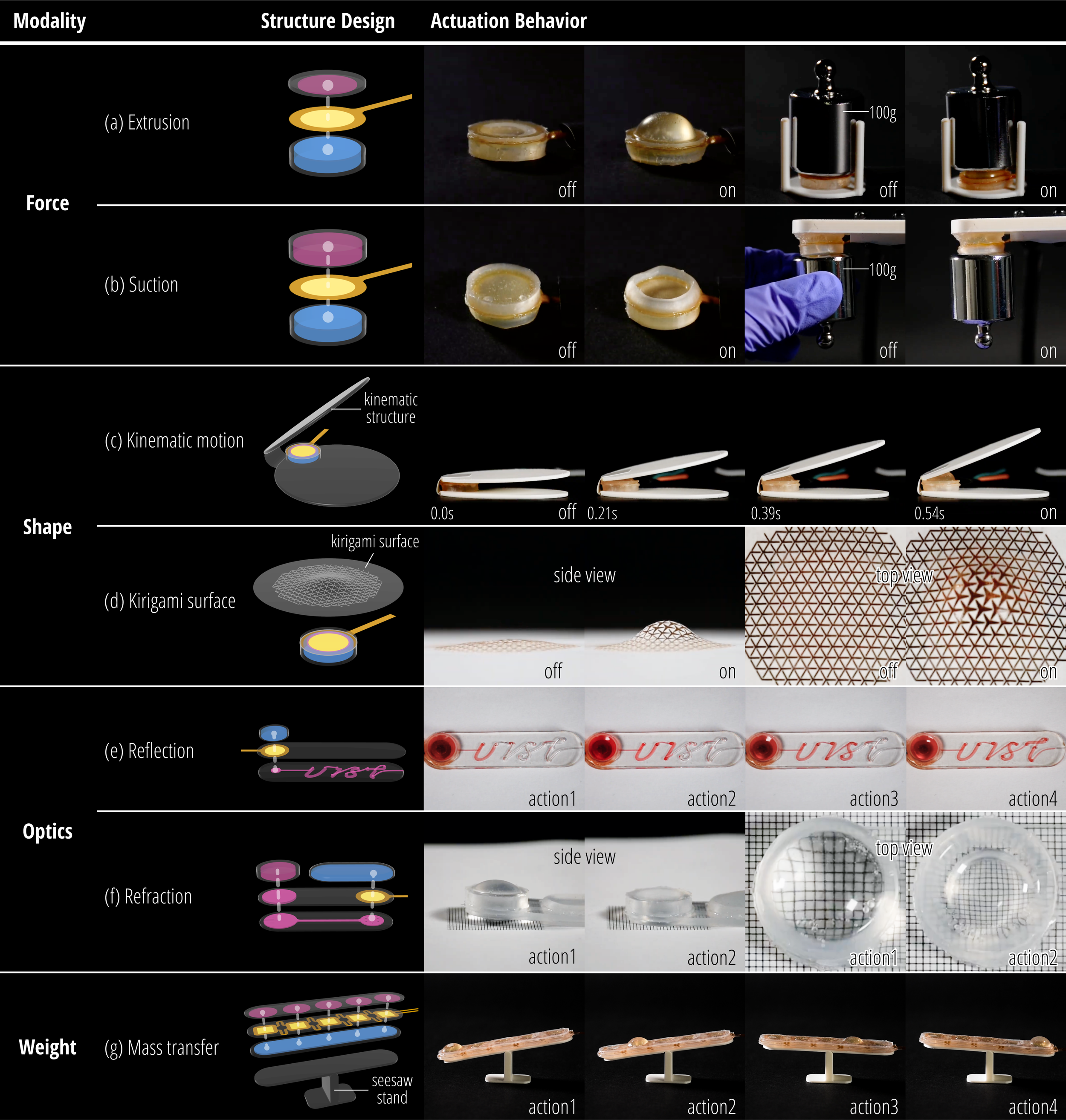

By varying the design of the multilayer structures, MorphingSkin achieves a versatile design space for multimodal actuation, spanning force, shape, optical, and weight domains. This multimodal actuation design space enables various combinations for different application opportunities.
Application 1: Dynamic Contact Condition for Robot Skin
The first prototype demonstrates a robotic gripper that can provide extrusion or suction actuation on the skin. These can be used to adapt to different mechanical sensitivities of the object.

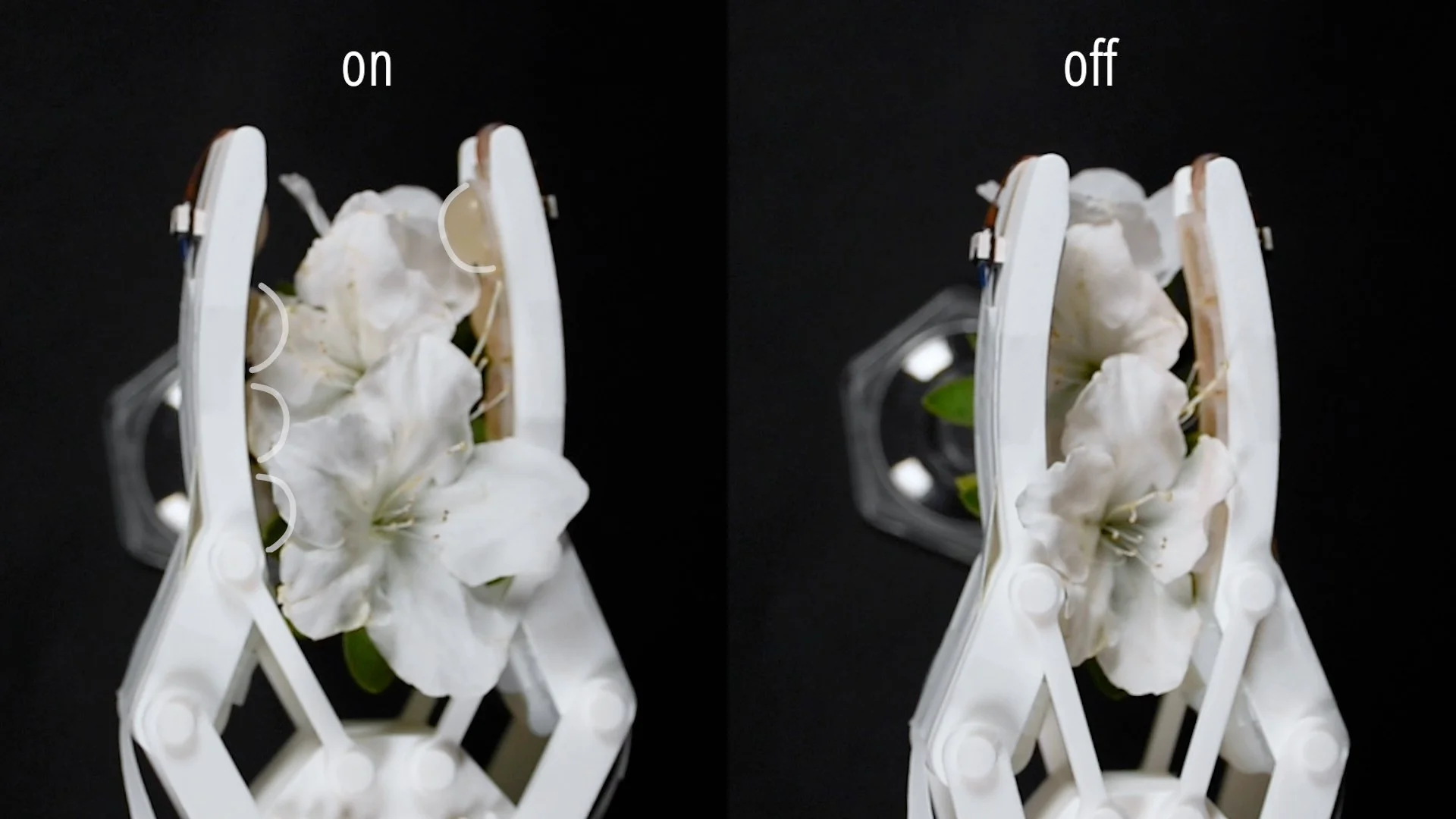

For example, by selectively actuating the extrusion actuators, the gripper can provide a shape-adaptive, localized soft contact, to grip a rectangular cake, instead of crushing the corner of the cake. It can also grip some fragile objects, such as flowers, by providing localized soft support, to avoid squeezing the flowers.

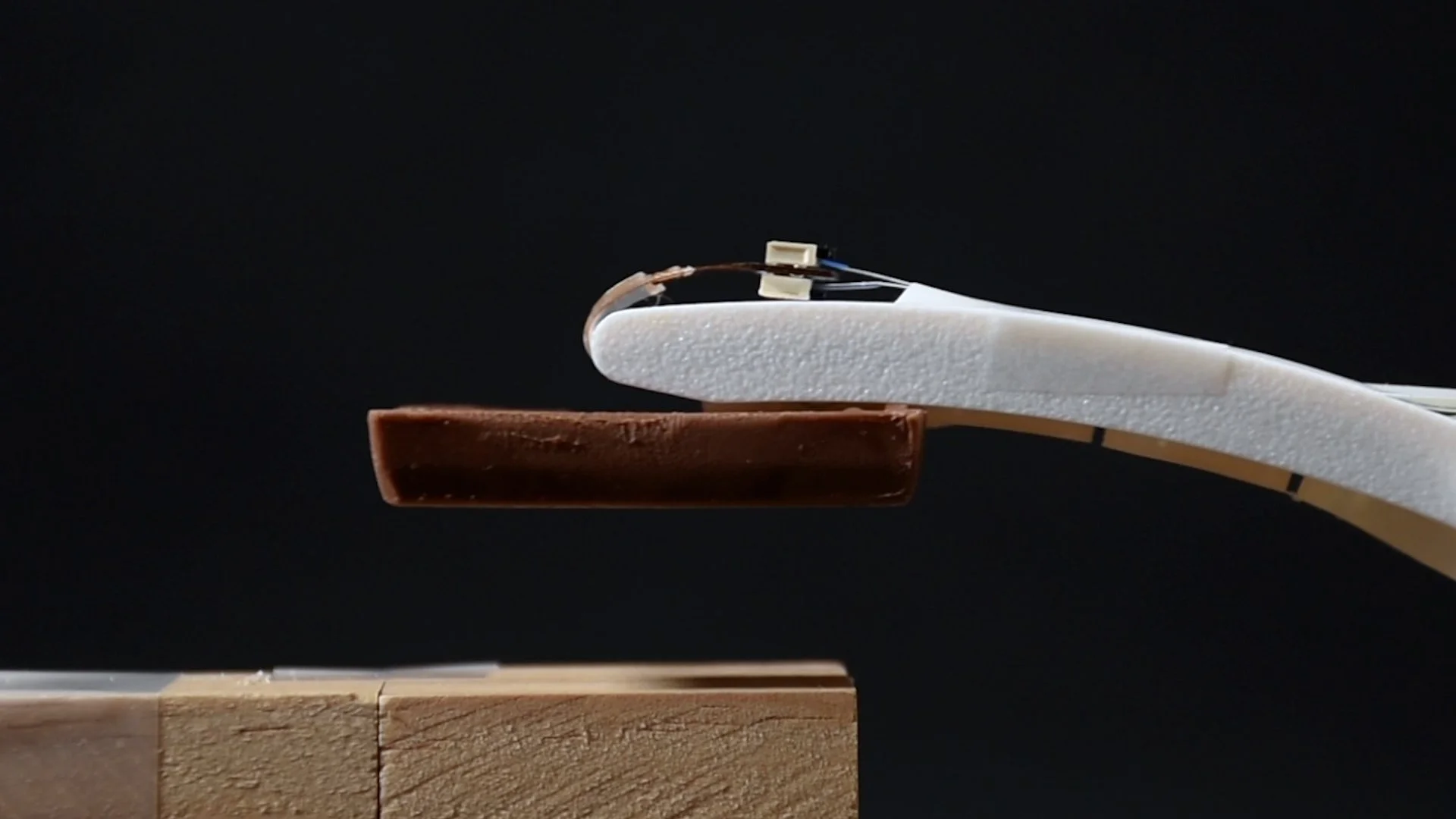

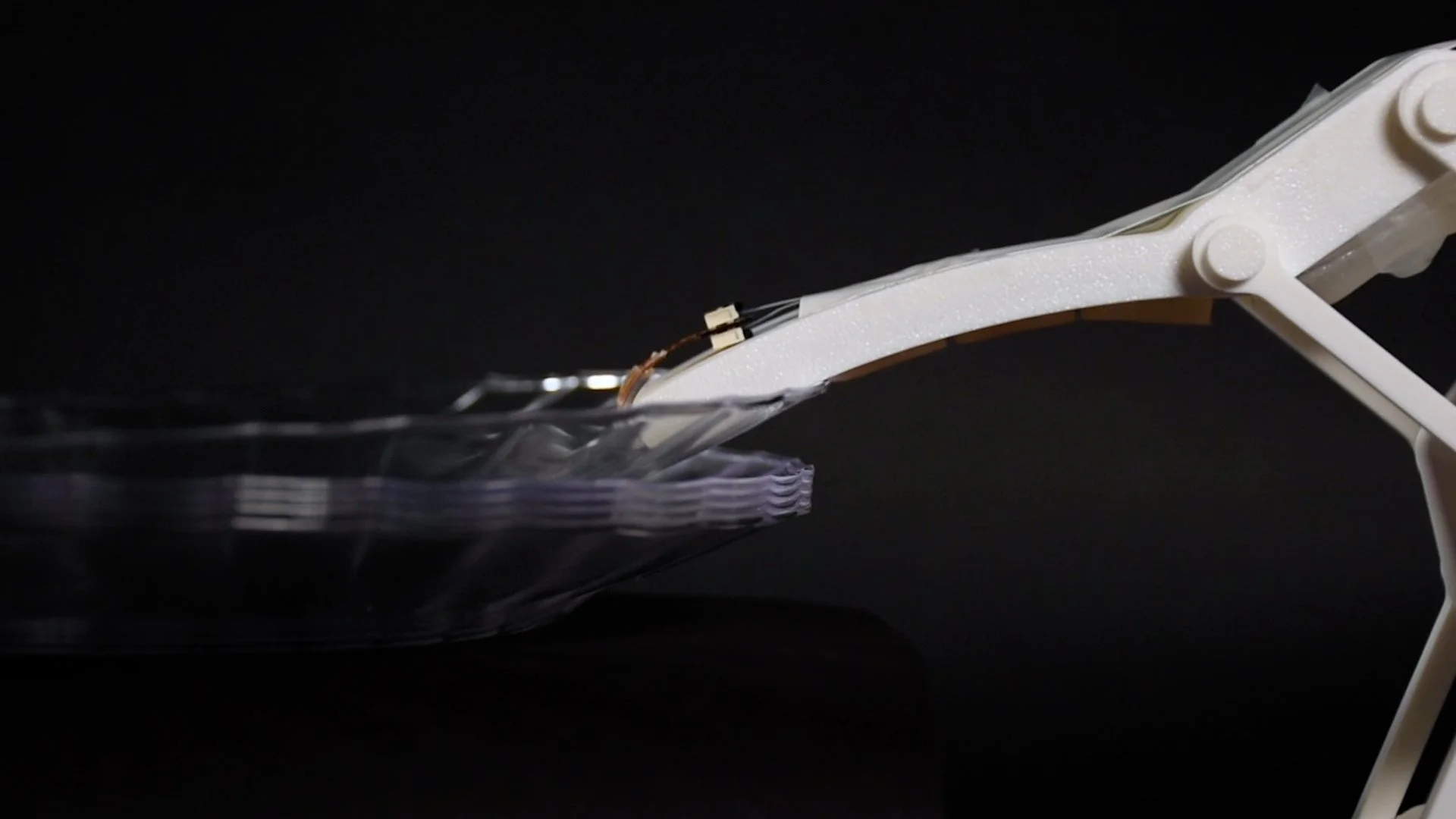

For suction contact (left two figures), the gripper can perform suction on objects that are challenging to pinch, such as a fragile chocolate or a plate stacked on top of the others. If the skin remains inactive, it can also provide a larger gripping force by hard contact (right two figures) from the backbone, in order to hold some solid and heavy objects.
Application 2: Desktop Companion Robot

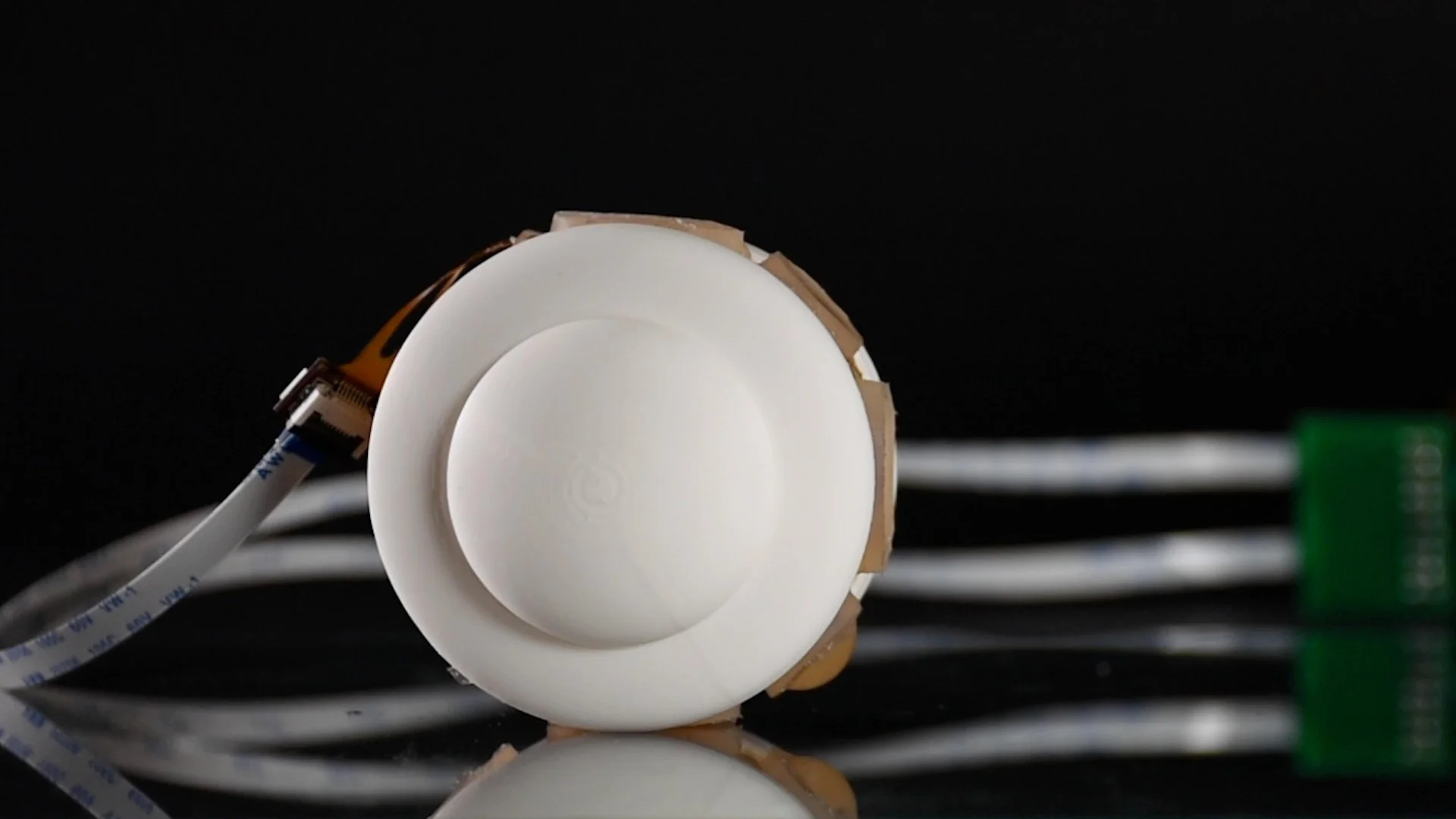

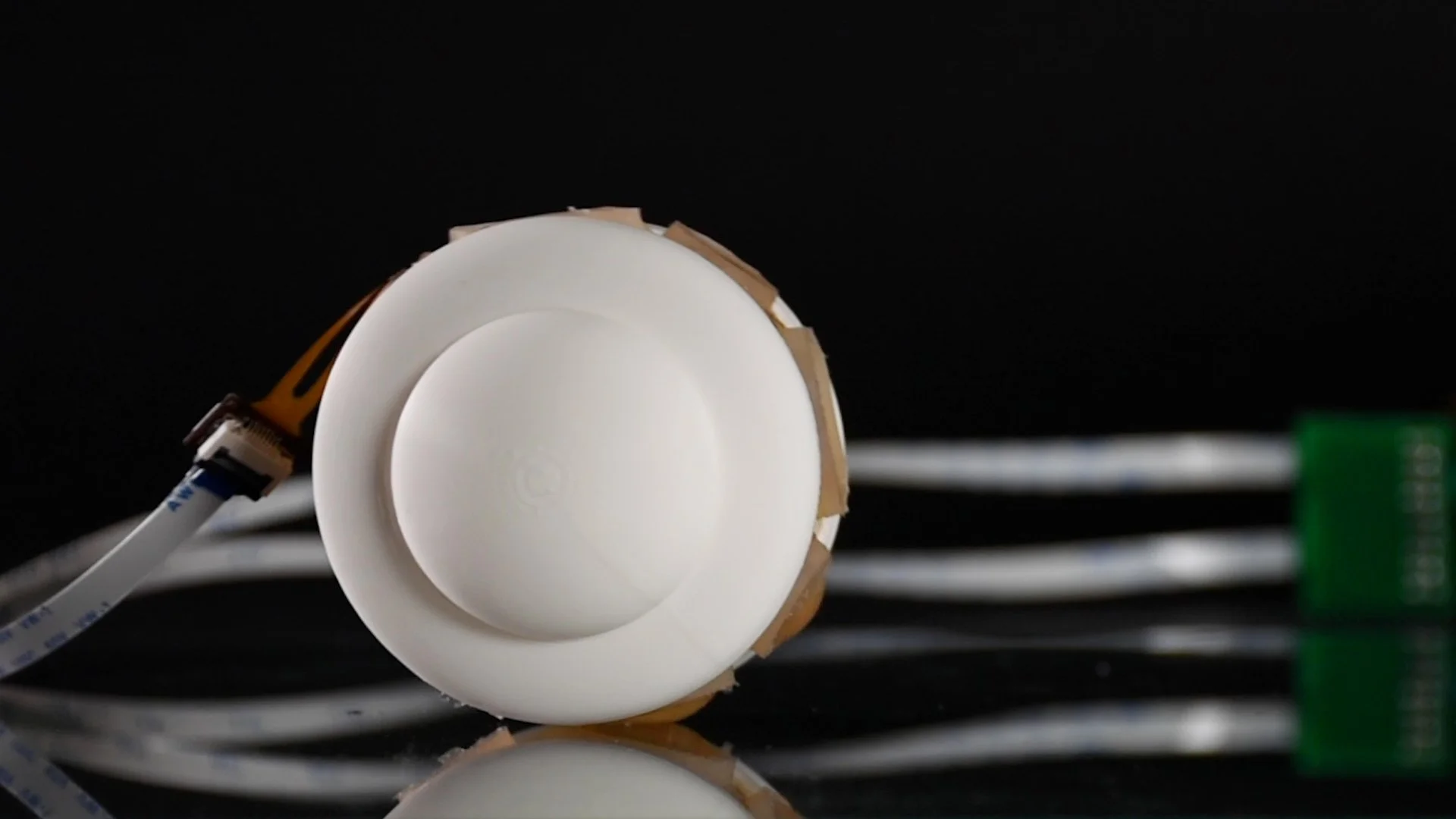

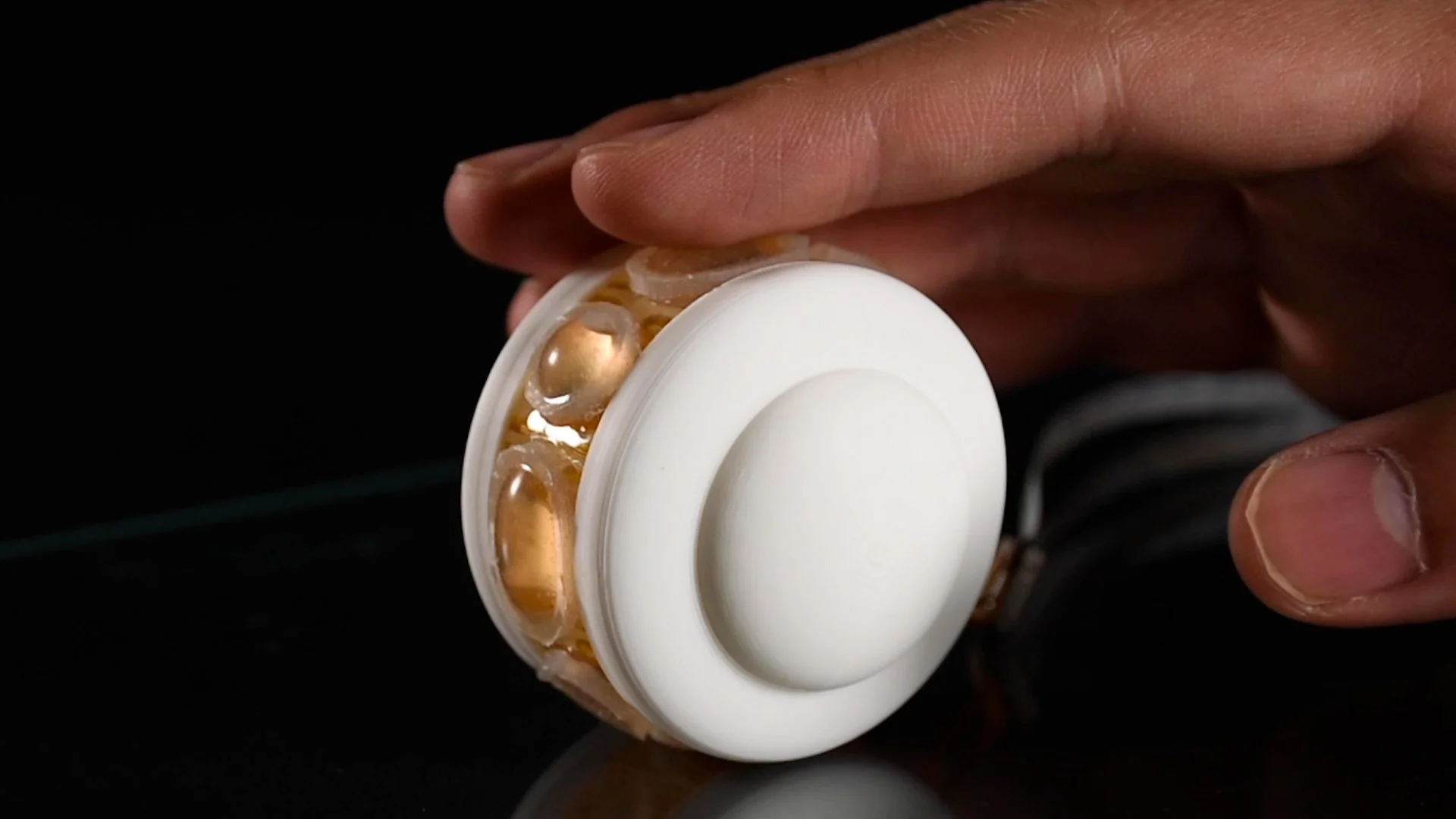

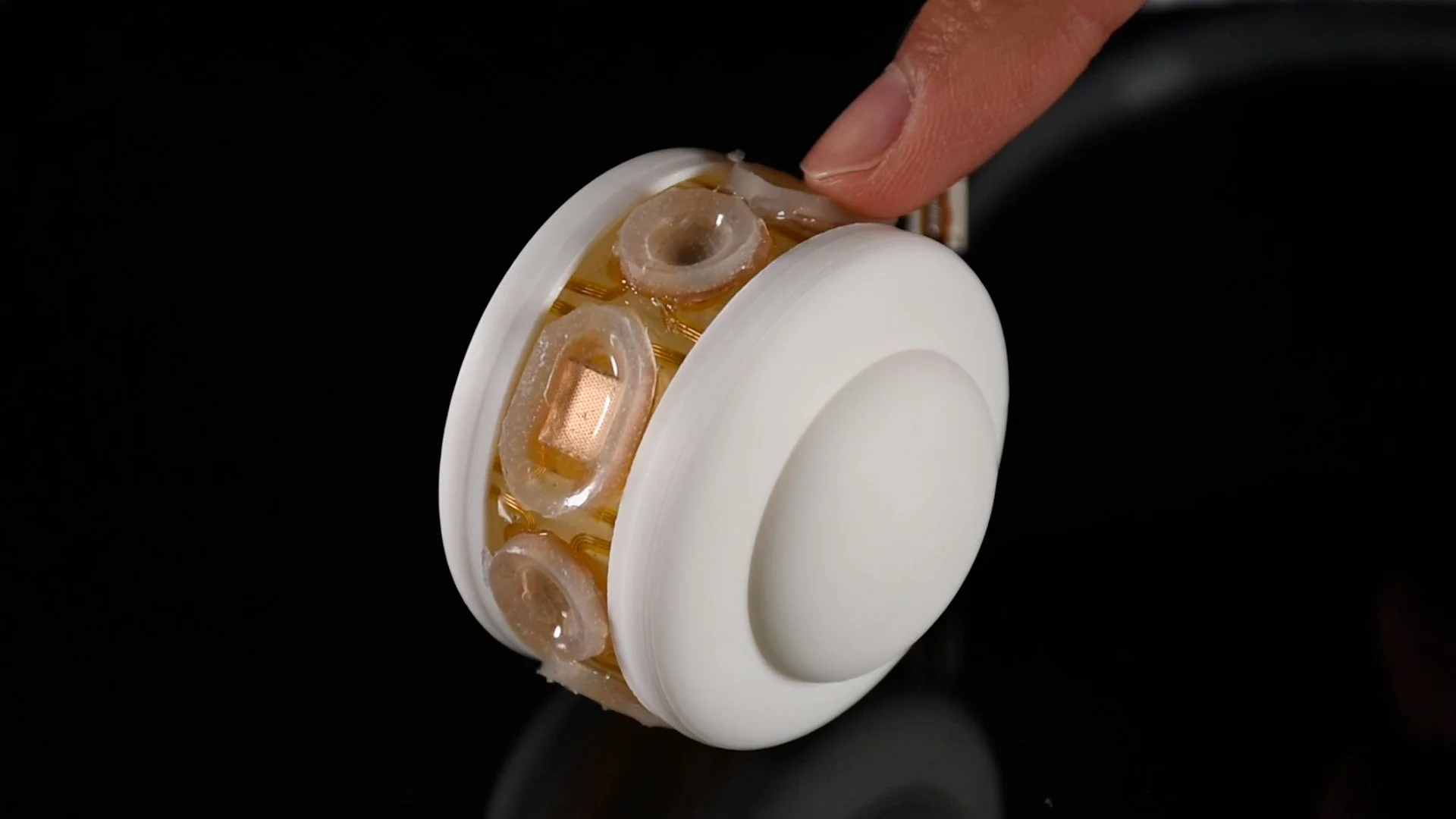

Another robotic application we demonstrated is this desktop companion robot. It can collectively use the extrusion and suction actuators around the body to provide highly emotional expressions.

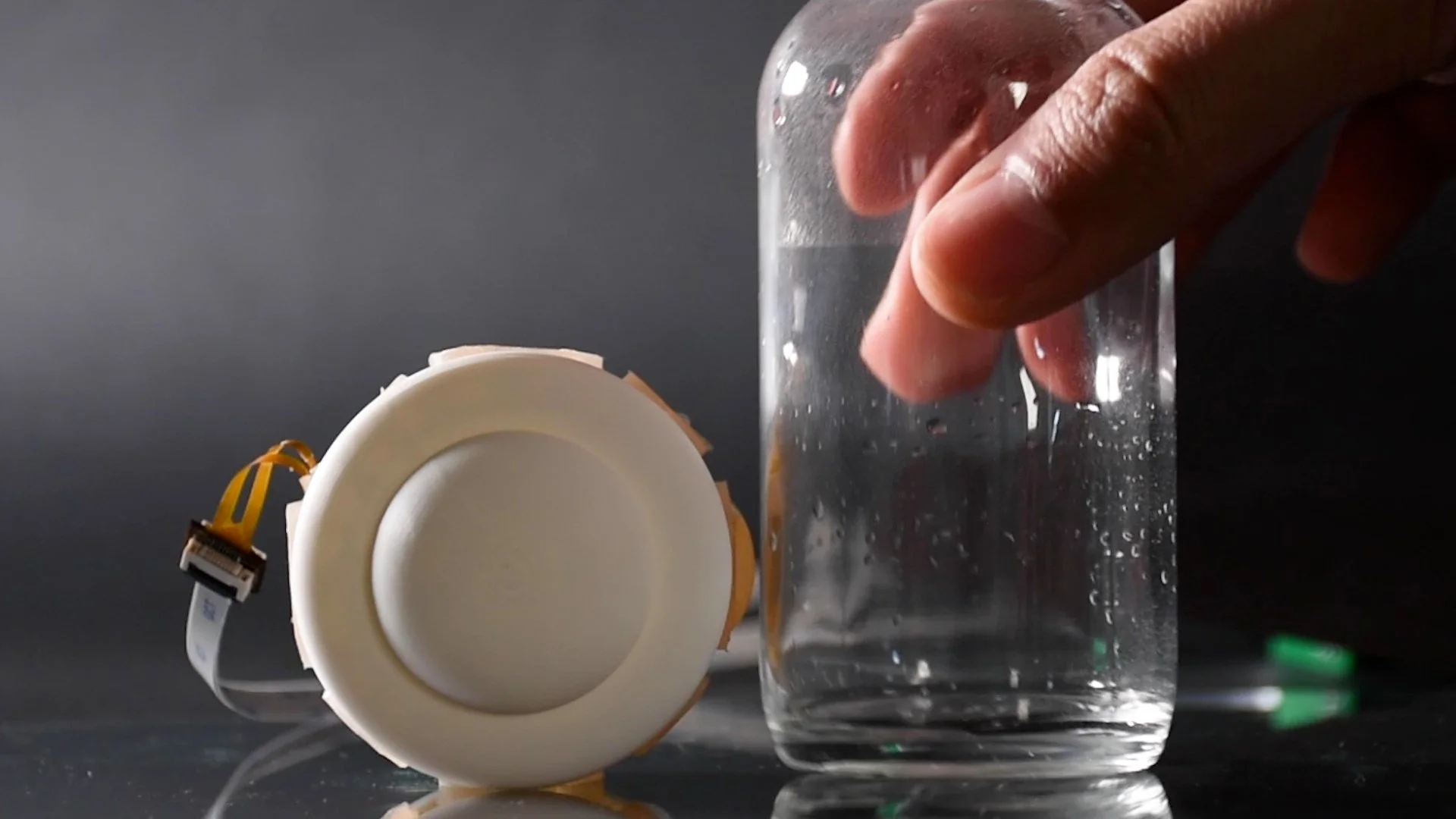

For example, it can mimic an inflating breathing rhythm to show a calm mood (figures 1,2), or move itself around the table by excursion, to show excited emotion (figures 3,4). It can also stick to the table by suction, like being frozen on the table, to mimic a frightened feeling (figures 5,6), or stick to other objects from the user, as if it is playing with the user in a mischievous mood (figures 7,8).
Application 3: Multimodal Wearables

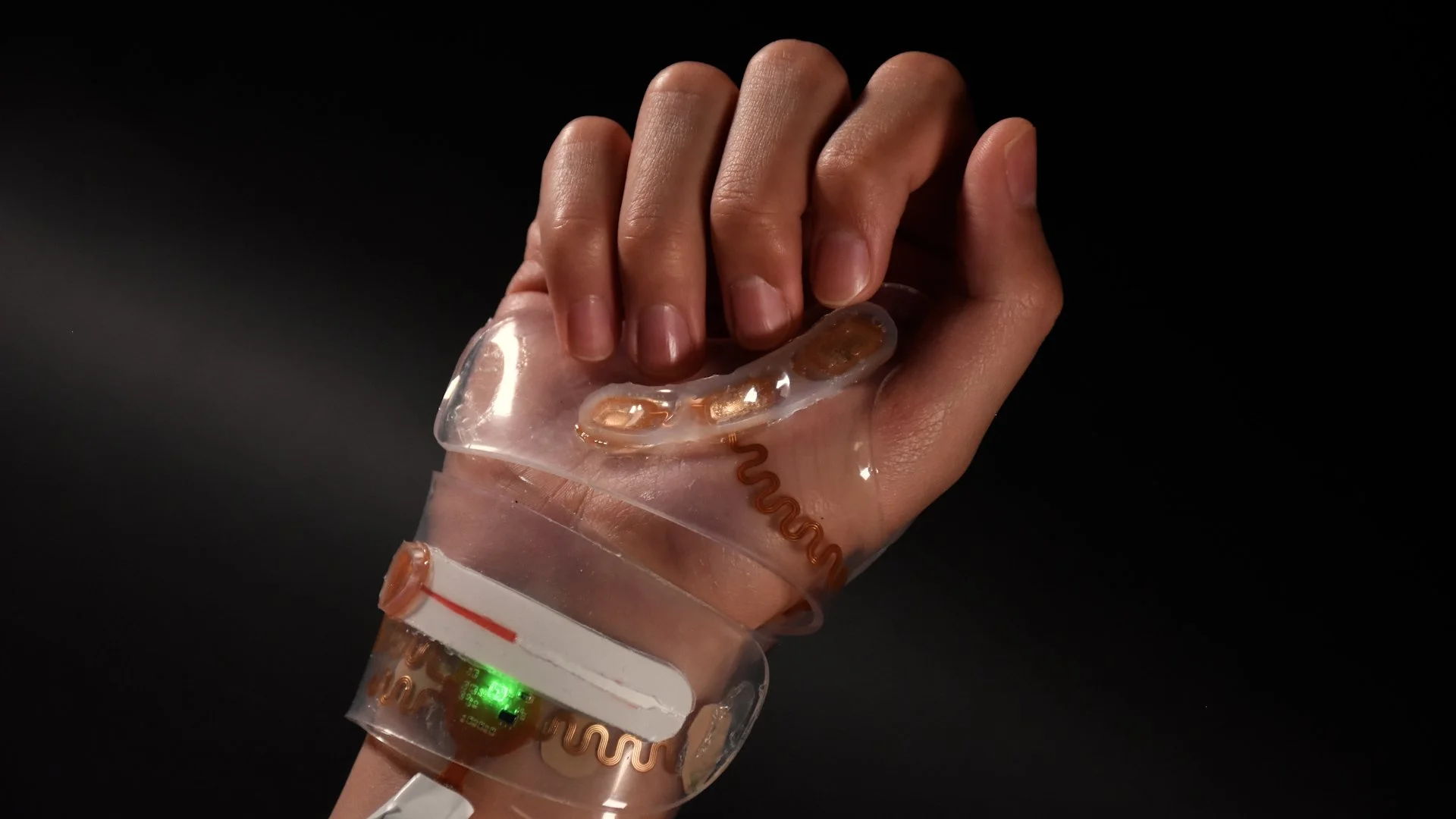

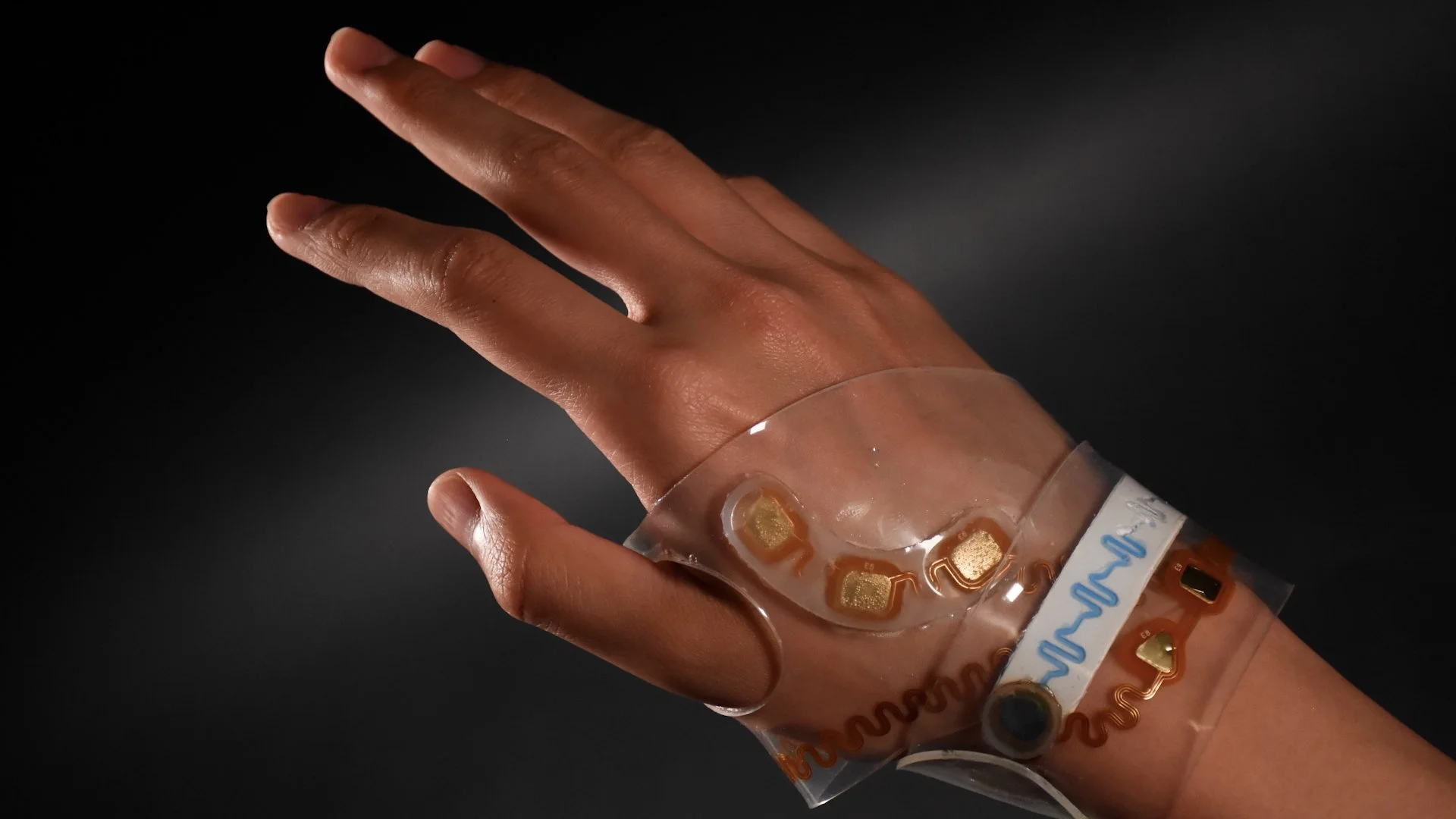

To explore using MorphingSkin as a wearable on the human body, we demonstrate a wrist brace that contains multimodal haptic and visual feedback.

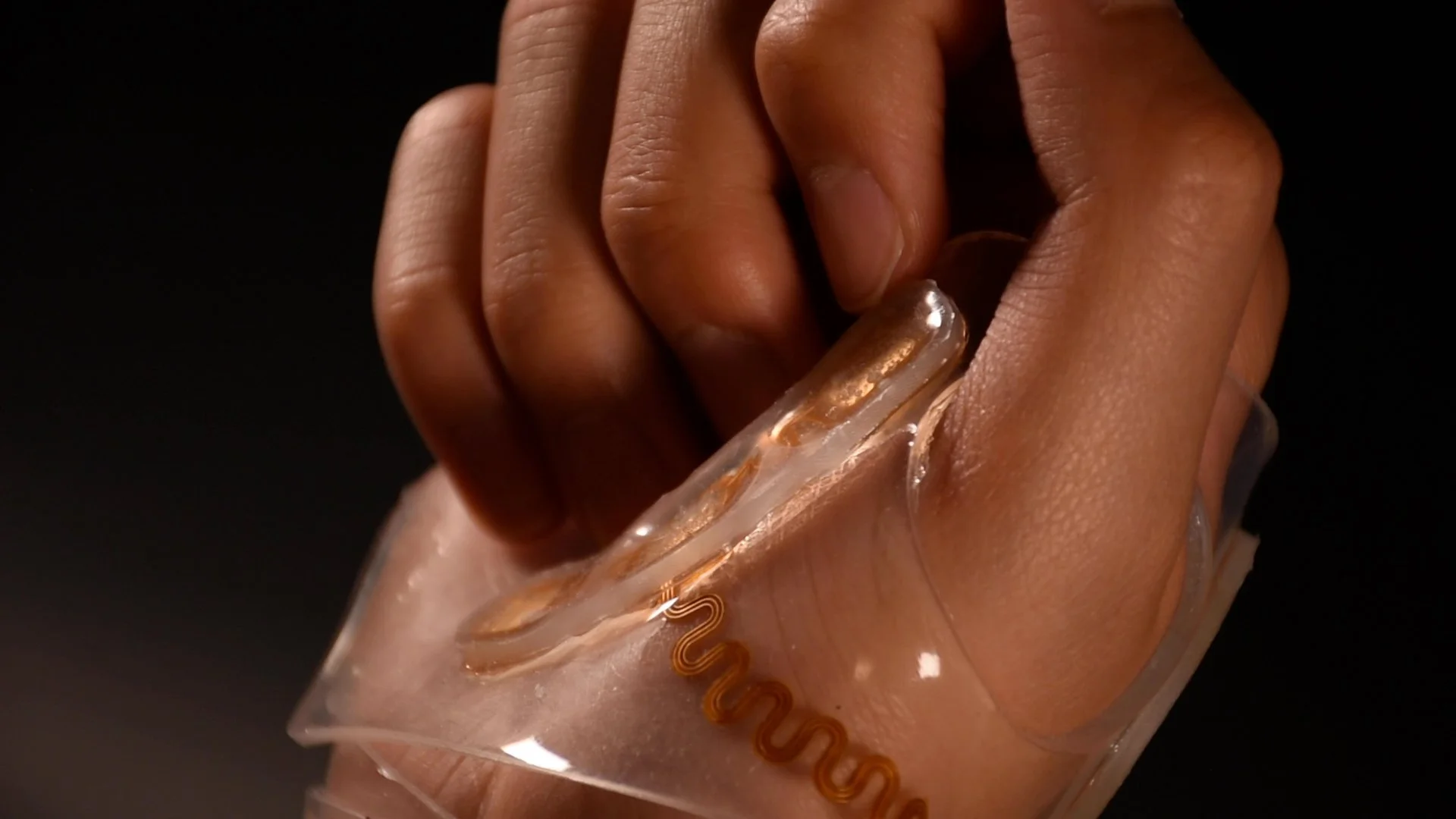

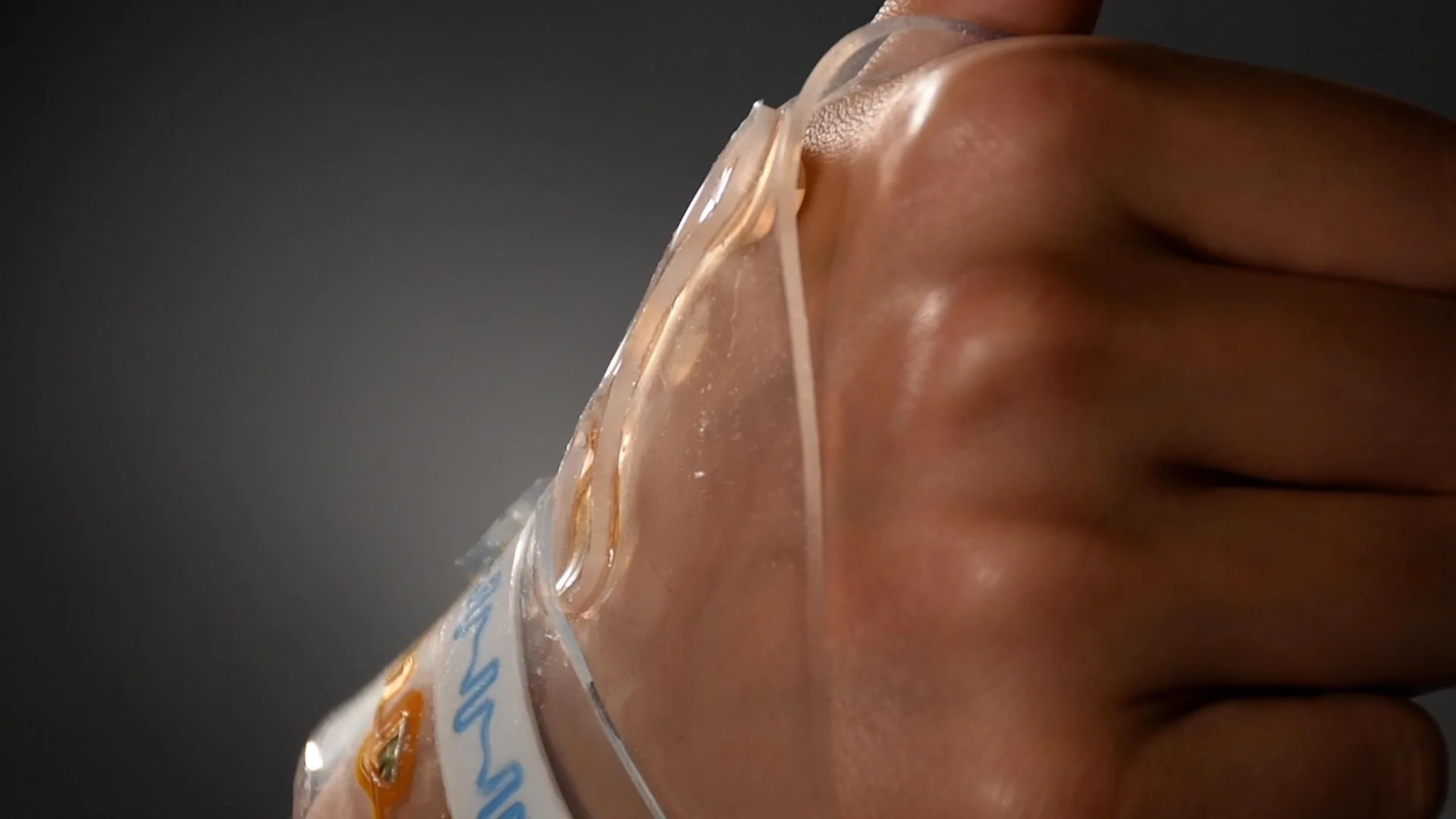

The haptic feedback (left two figures) comes from the extrusion actuators that can provide pressing force inward on human skin. They can also work independently to convey complex spatio-temporal haptic cues. The visual feedback (right two figures) relies on the fluidic display embedded in the brace. They can be controlled by the user, for example, to record information for customized usage.
Based on these functions, we envision application scenarios such as exercising, where users can “feel" the guidance of different actions by haptic feedback, such as the moving direction of their hand or the breathing rhythm. The visual feedback can also provide data visualization, such as heart rate or training progress, in an unobtrusive way.
Application 4: Multimodal Tangible Display

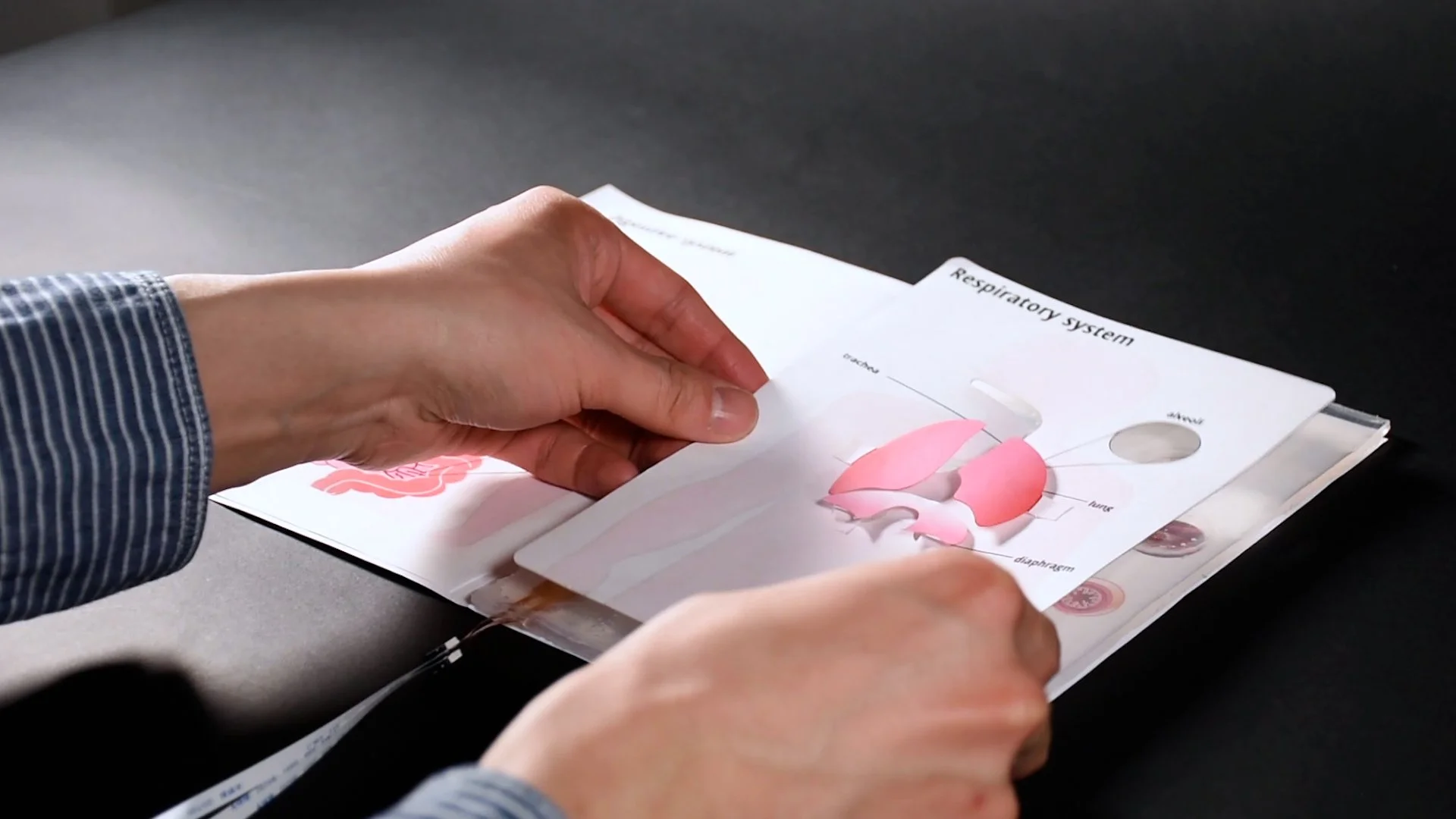

We demonstrate a pop-up book on human anatomy with a “magic page” (figure 1) designed with MorphingSkin. Different actuation modals are used to collectively show the physiological dynamics of the respiratory system. This includes the flow animations (figure 3,4) to mimic the breathing air, the shape movement (figure 5,6) to show the expansion of the lung, and the dynamic refraction lens (figure 7,8) to visualize the expansion of the alveoli.
Application 5: Dynamic Aesthetic Lampshade

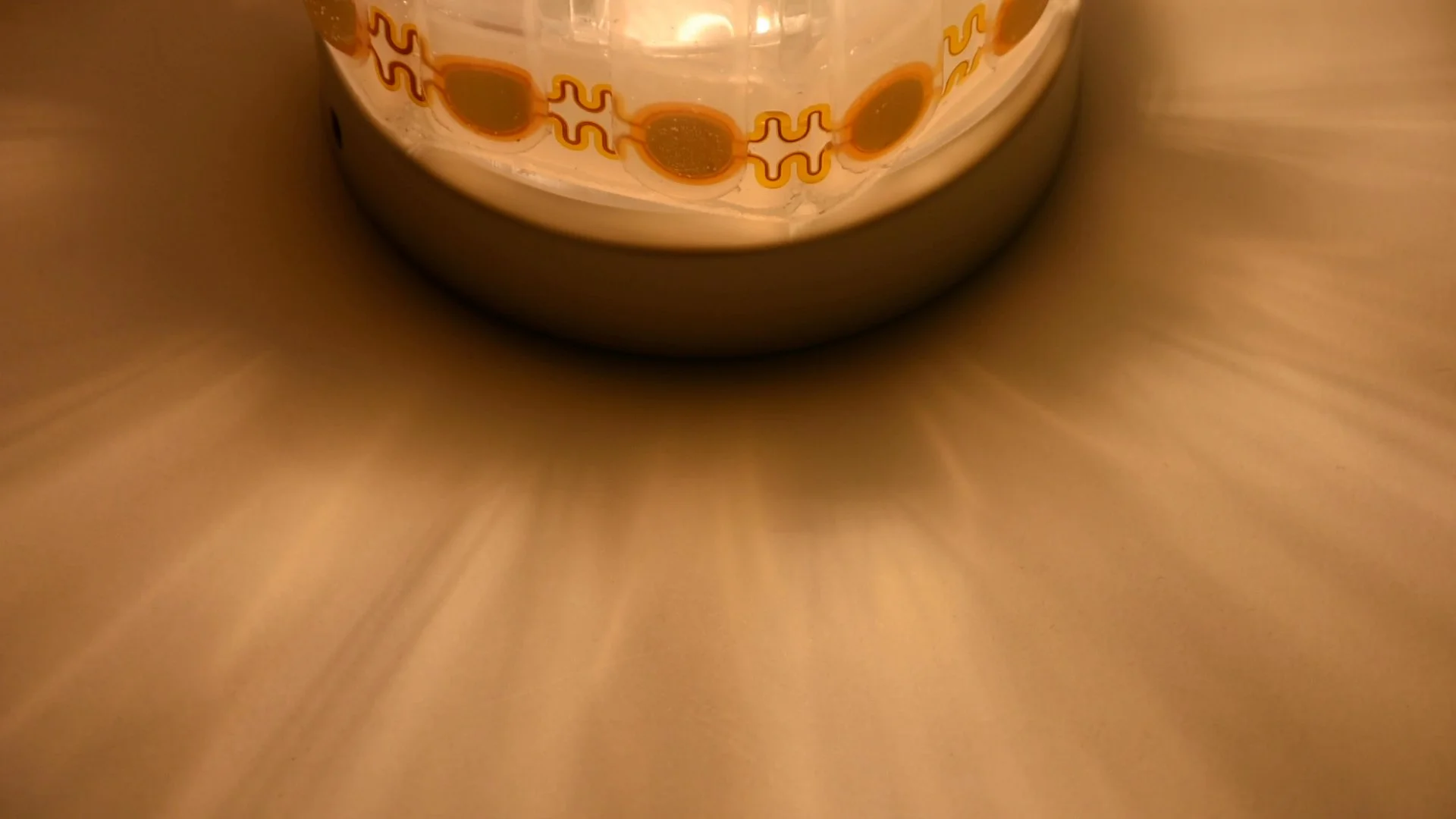

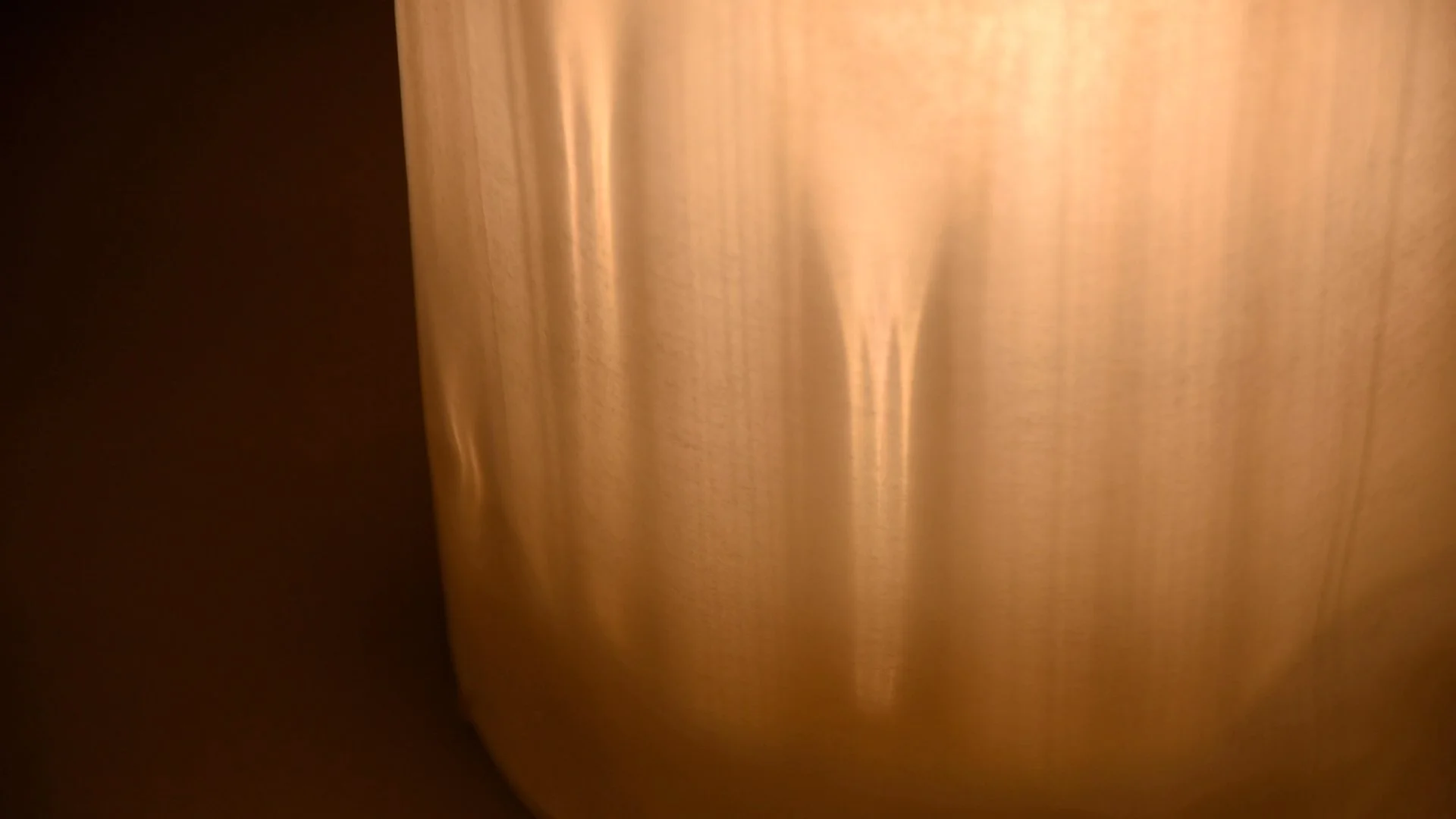

The lampshade contains a series of shape-changing lenses (figures 1,2). By using their shape changes and their interaction with light, we can achieve many different illumination effects, such as dynamic light patterns on the ground (figures 3,4), ambient display on the lampshade (figures 5,6), or surface texture changes for aesthetic purposes (figures 7,8).
Application 6: Multifunctional Soft Robotics
(RoboSoft paper)

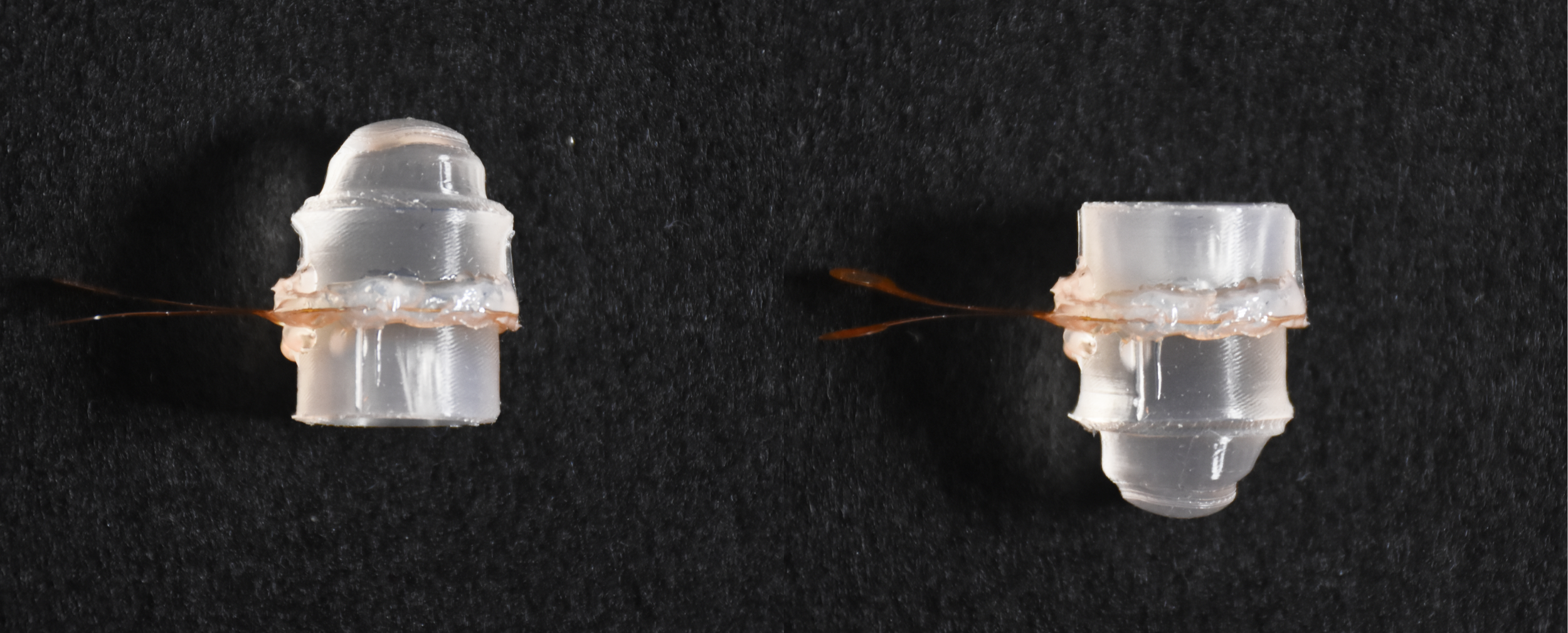

We developed a self-contained, controllable, soft bistable actuator, BiEOP, based on the MorphingSkin technology. The BiEOP actuator consists of two symmetric, dome-shaped elastic shells separated by an EOP layer, which transfers internal working liquid under electrical actuation below 300 V to switch between the actuator’s bistable configurations (see the figures below).

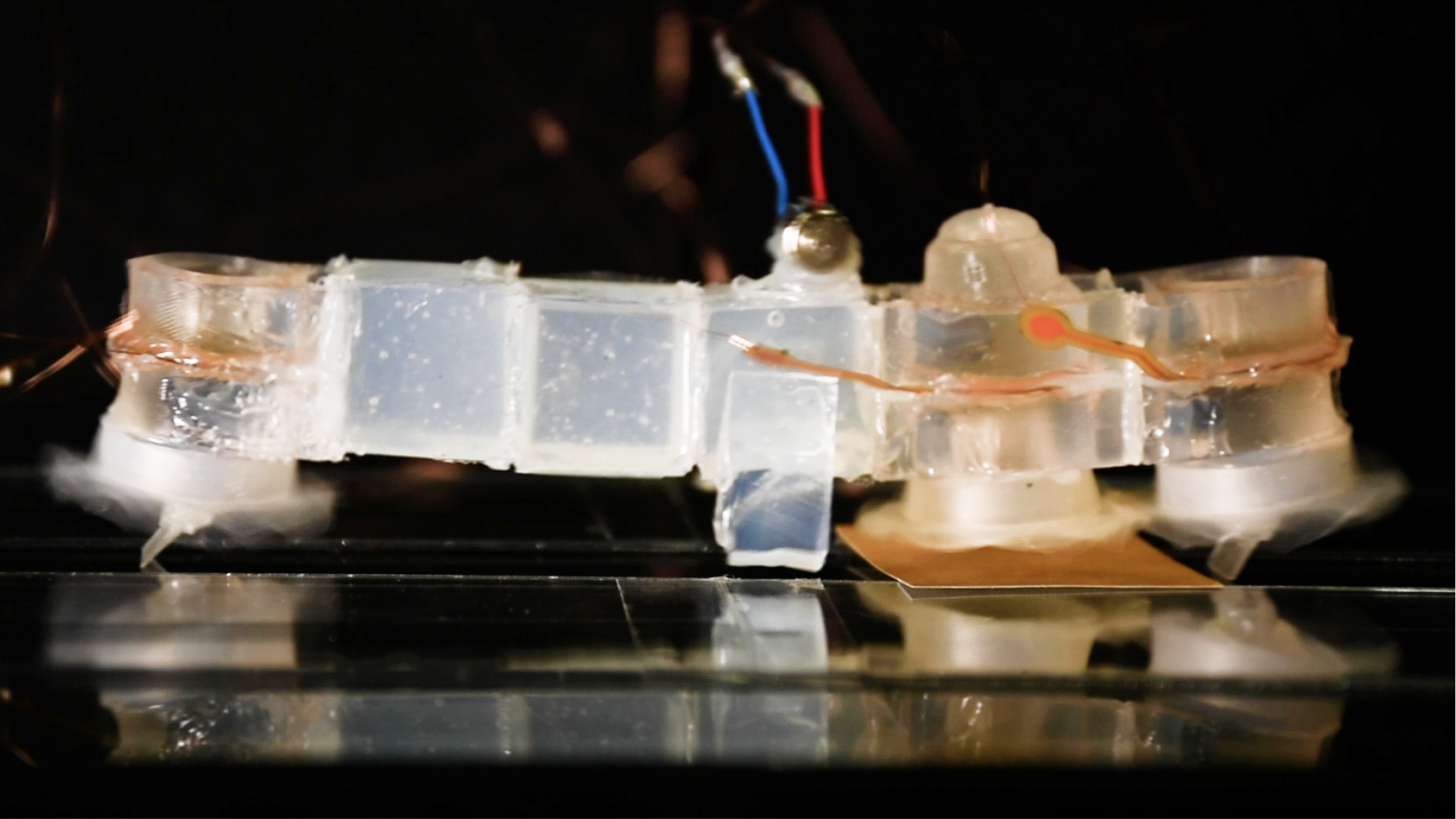

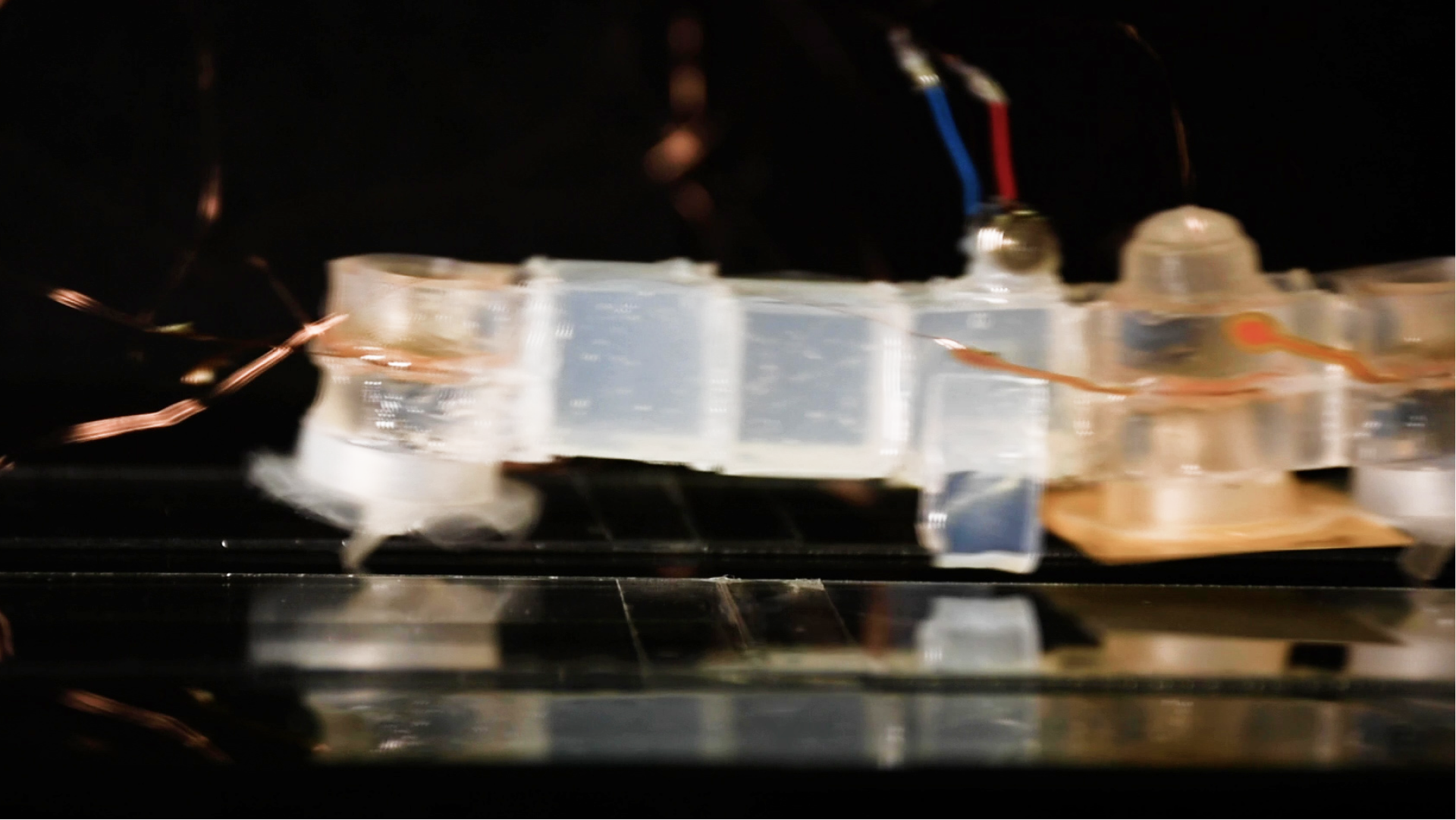

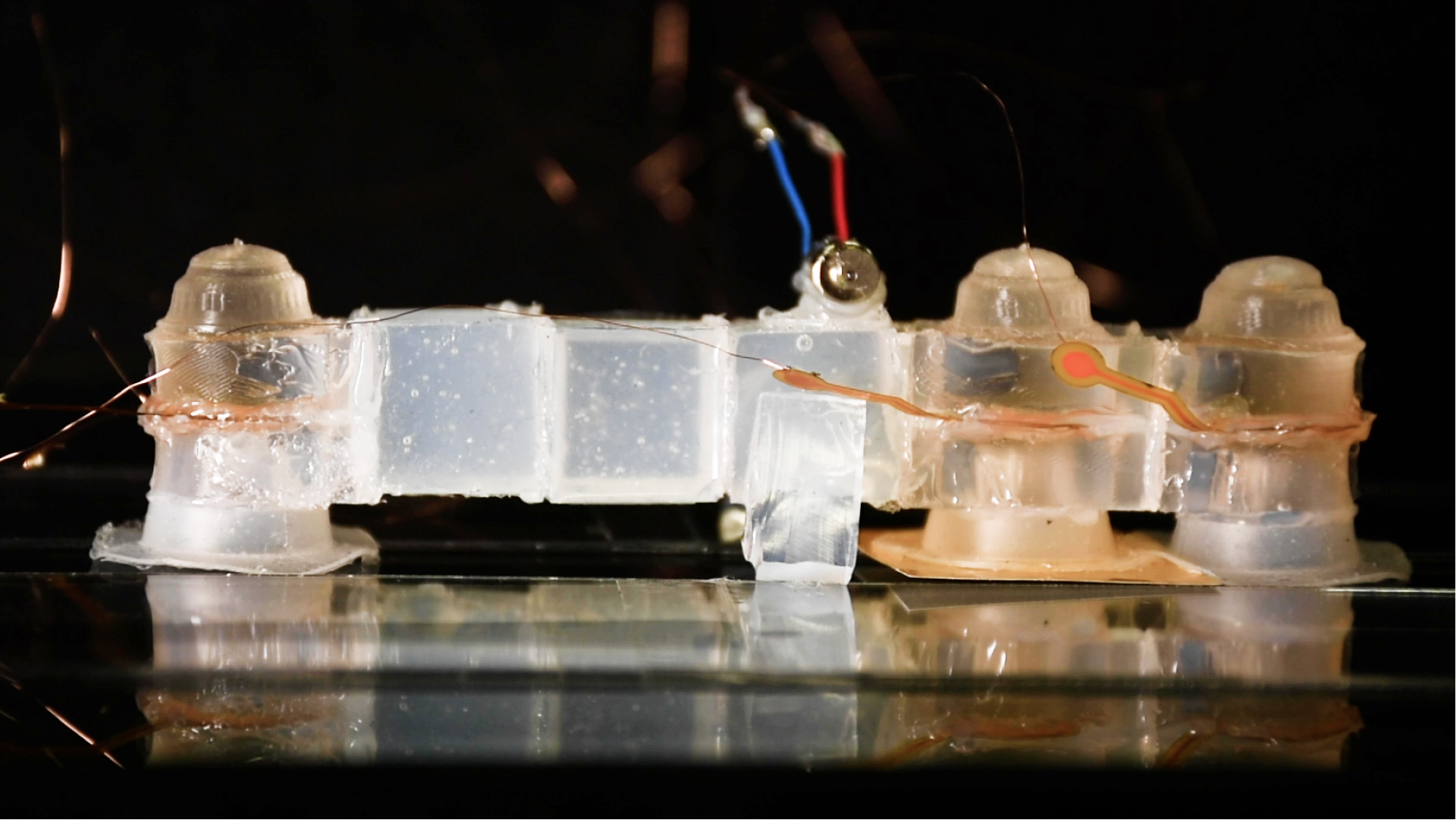

Utilizing mulitple units of the BiEOP actuators provides opportunities for designing soft robots with reconfigurable shape and multifunctionality. Here, we demonstrate a soft robot design that switches between bristle locomotion (left figure) and surface adhesion (right figure) functions by reconfiguring its shape and the surface conditions that contact the ground.

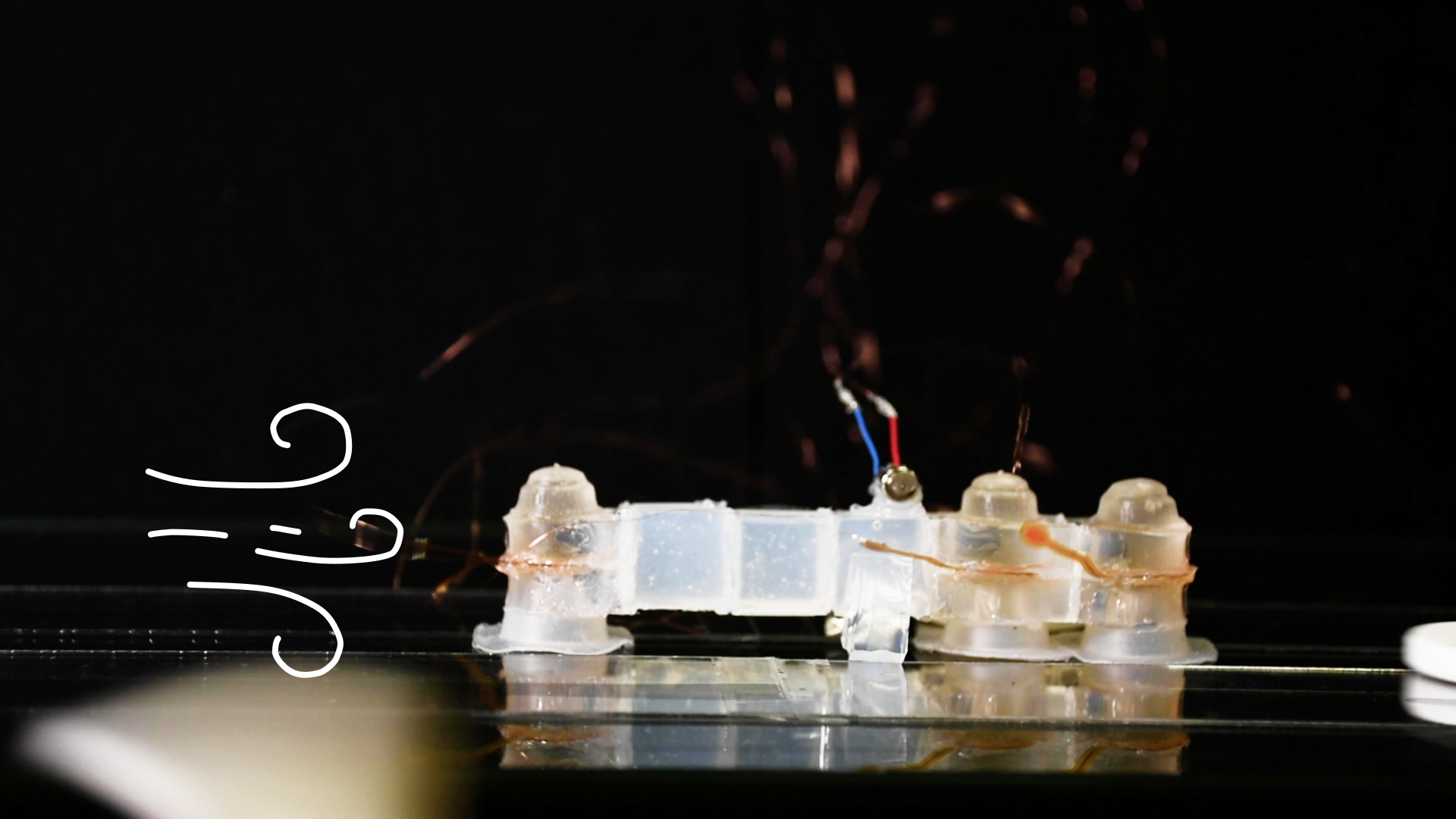

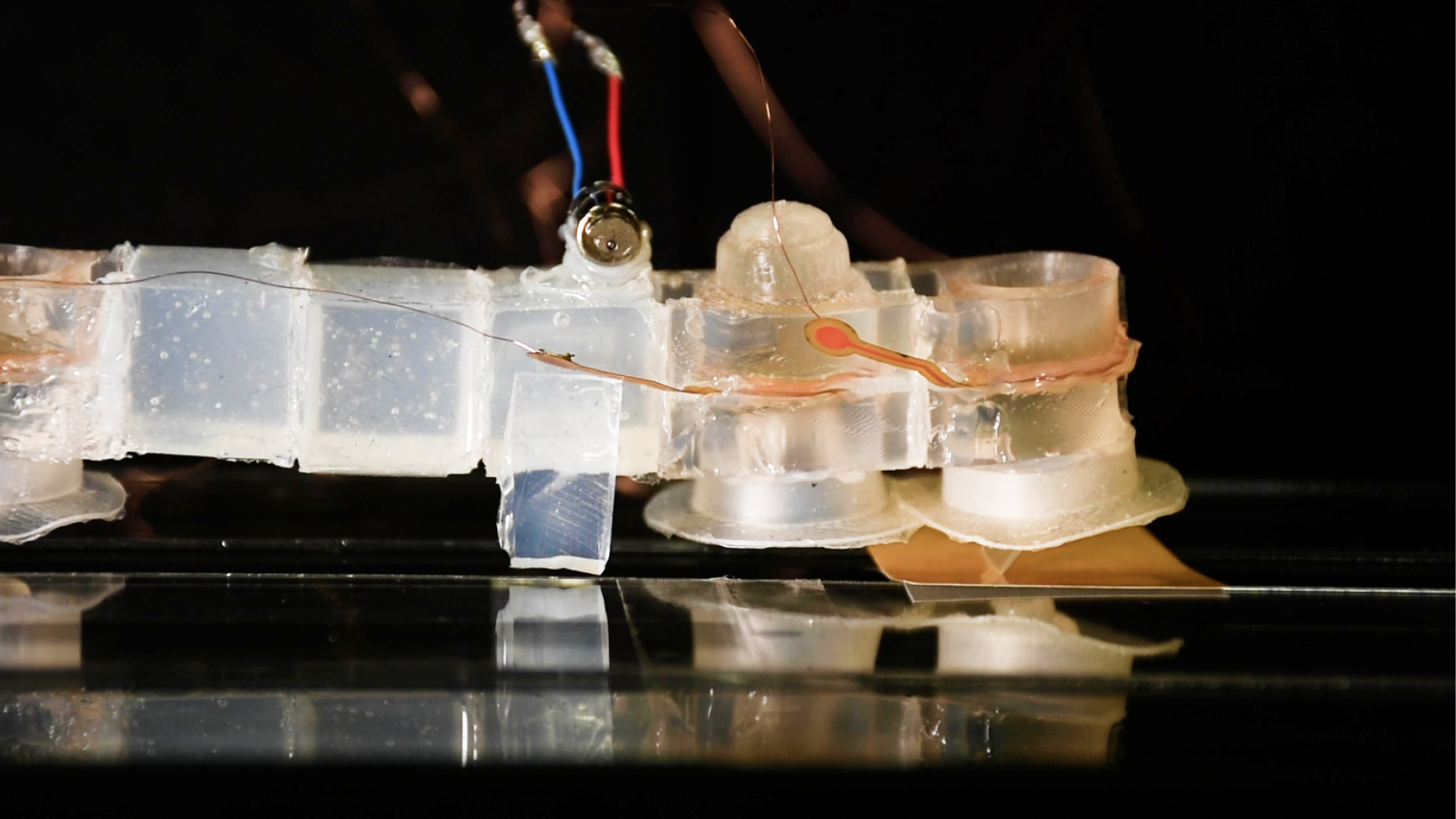

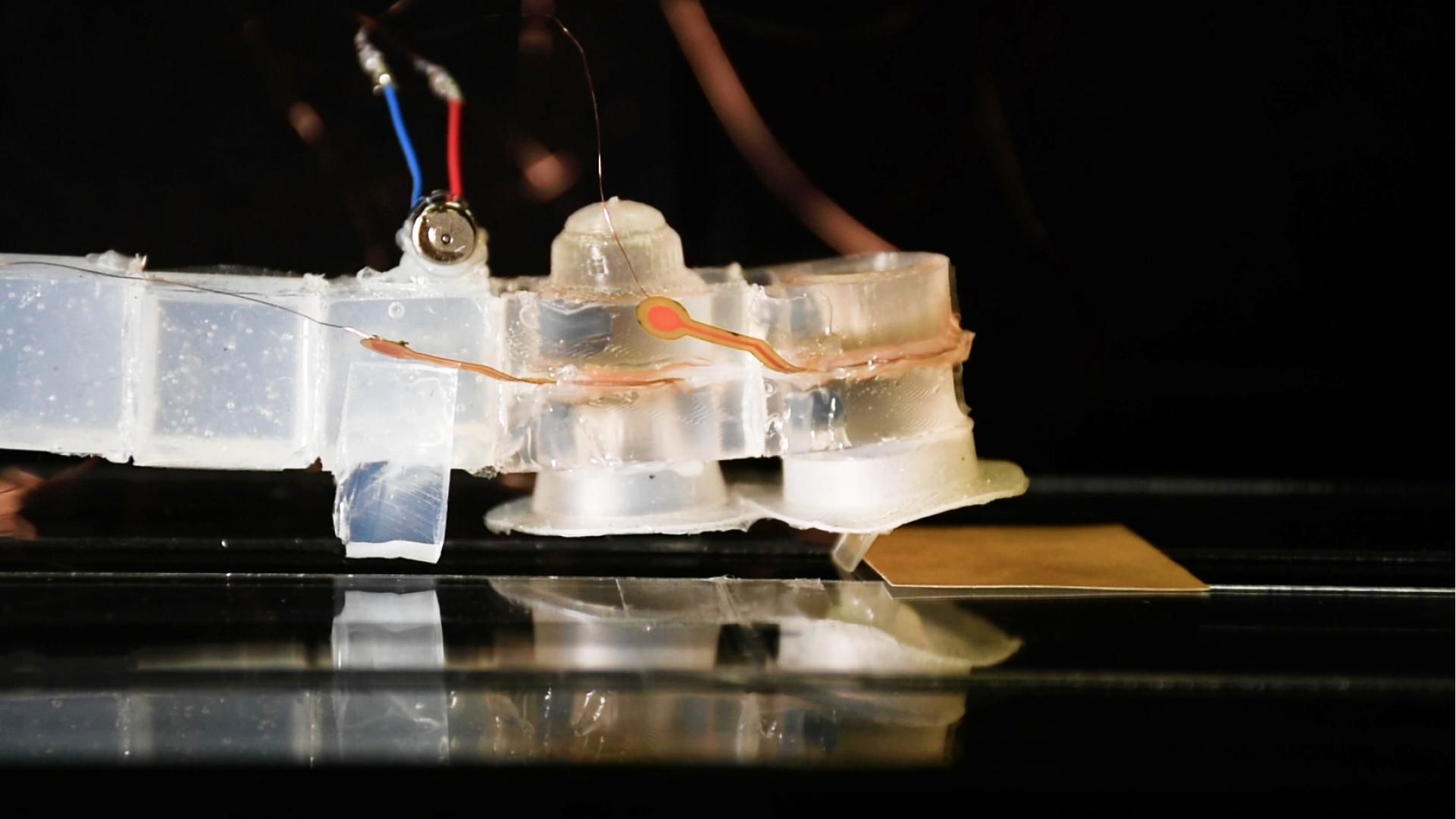

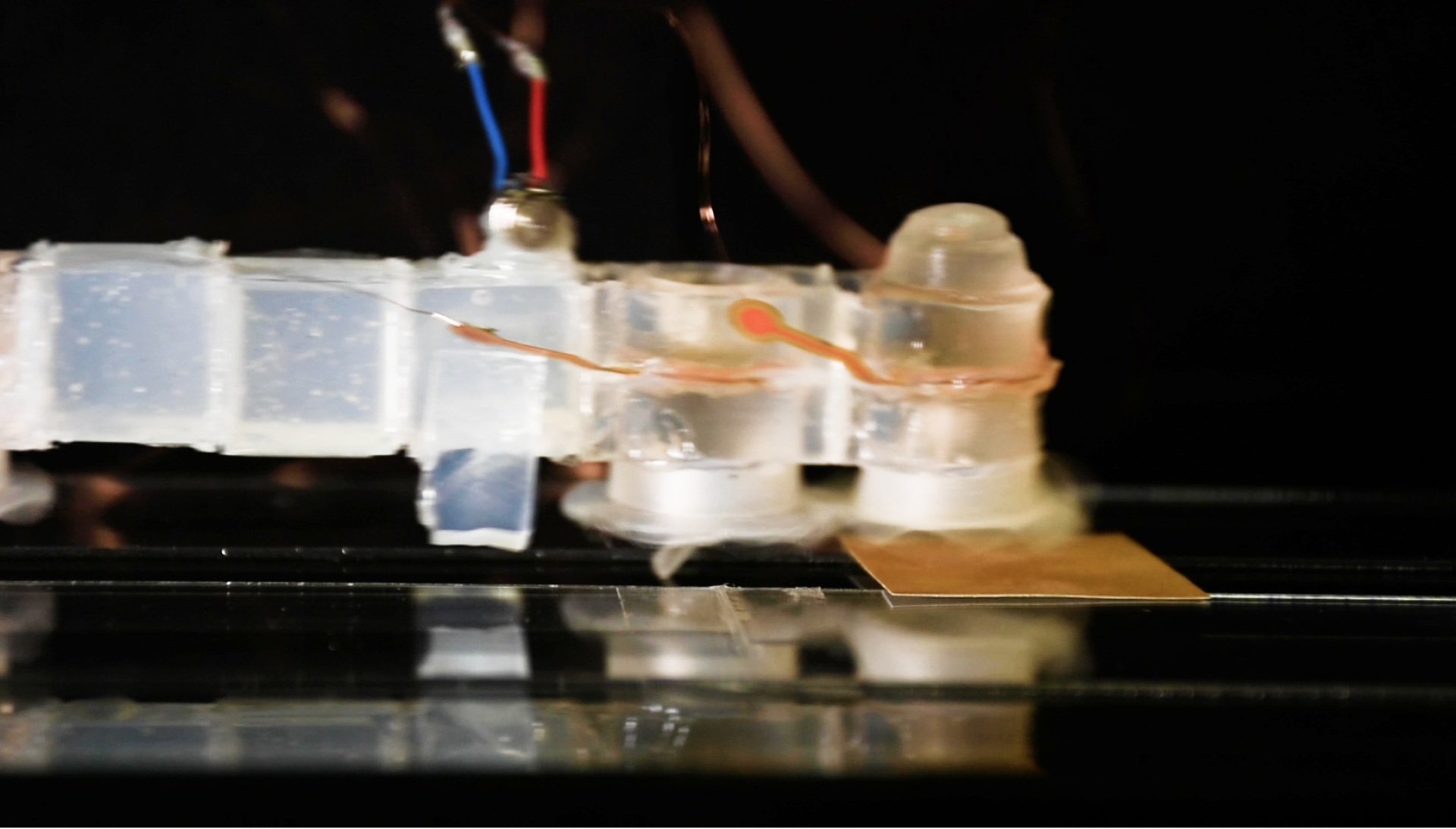

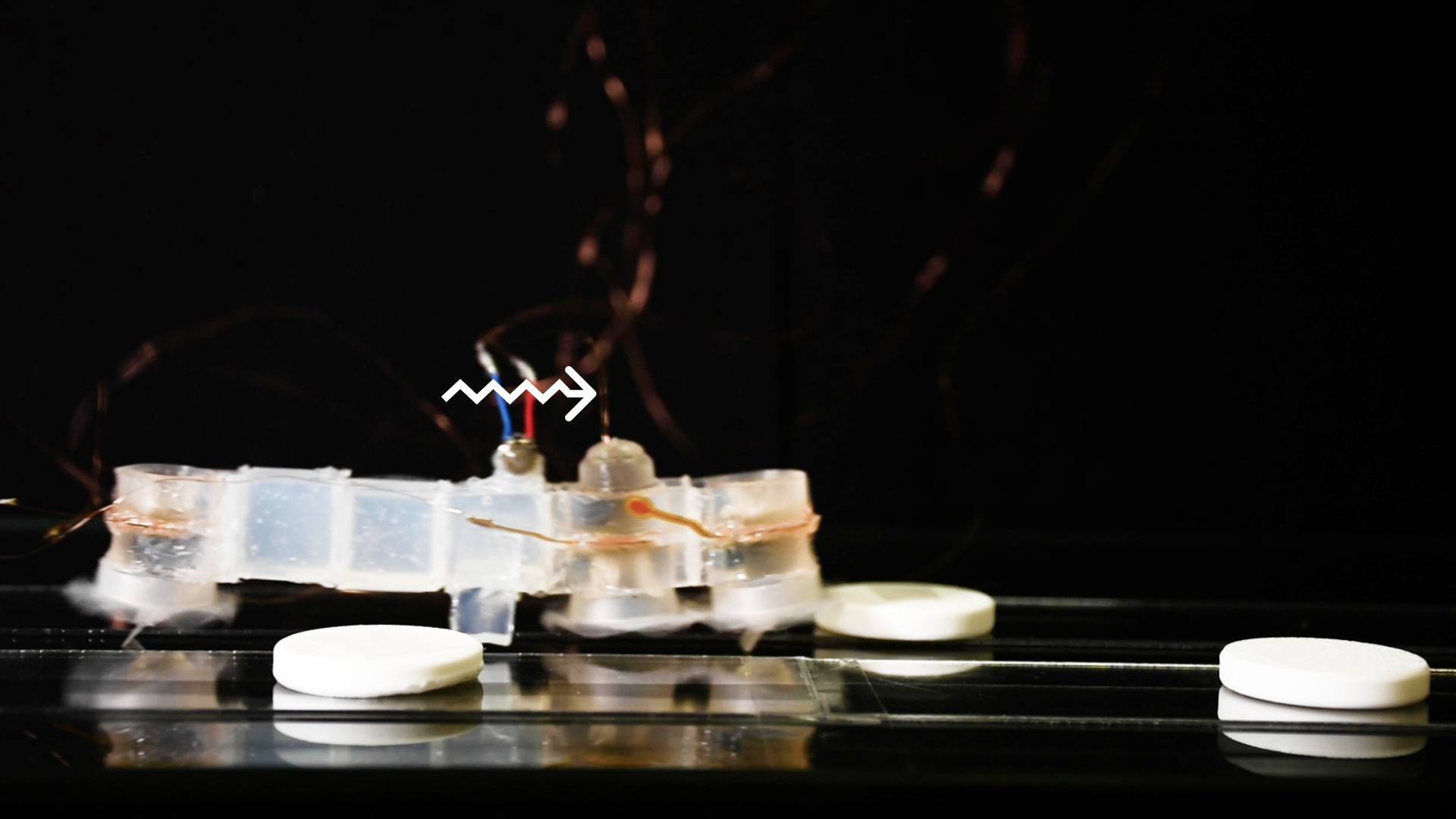

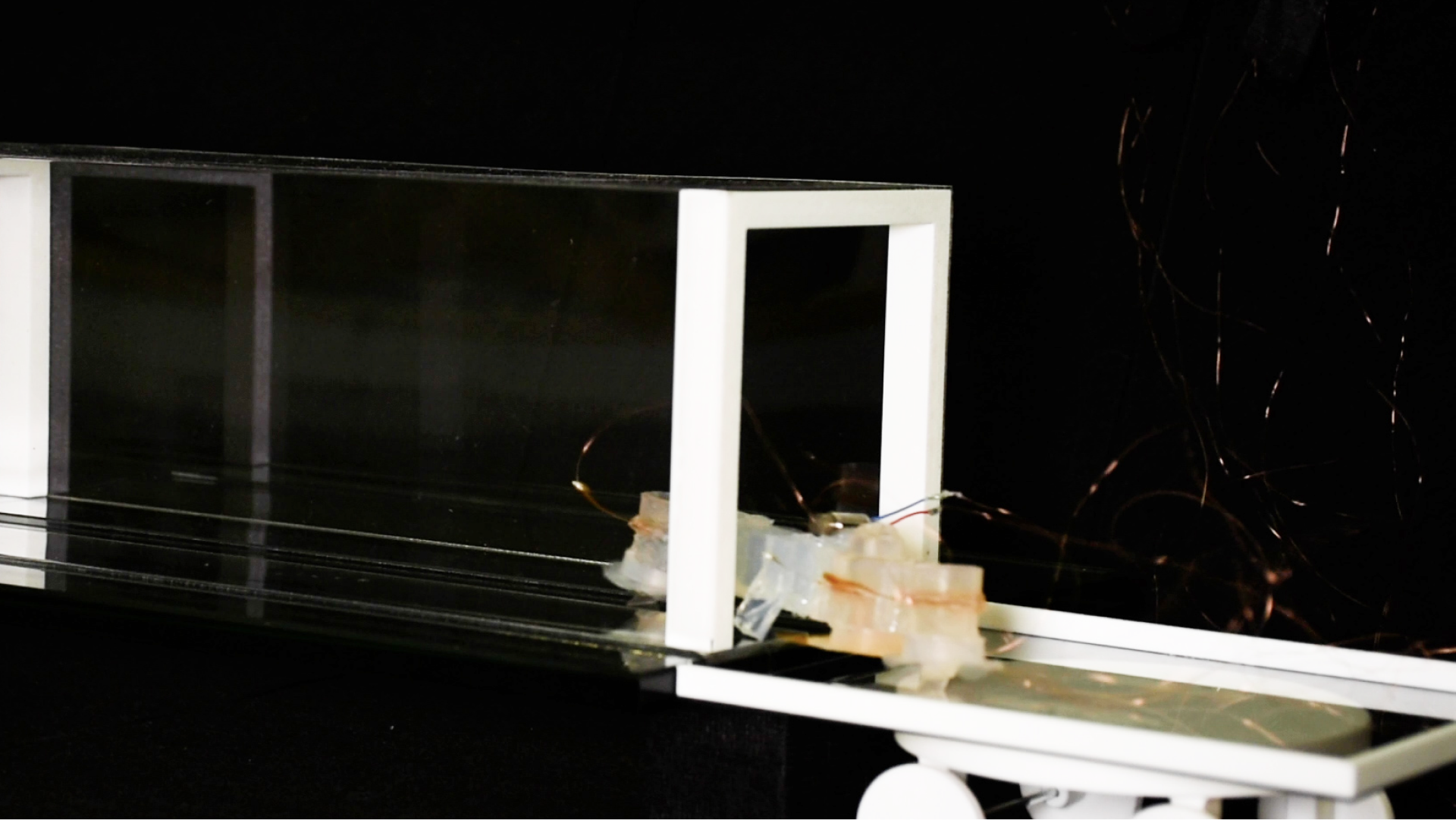

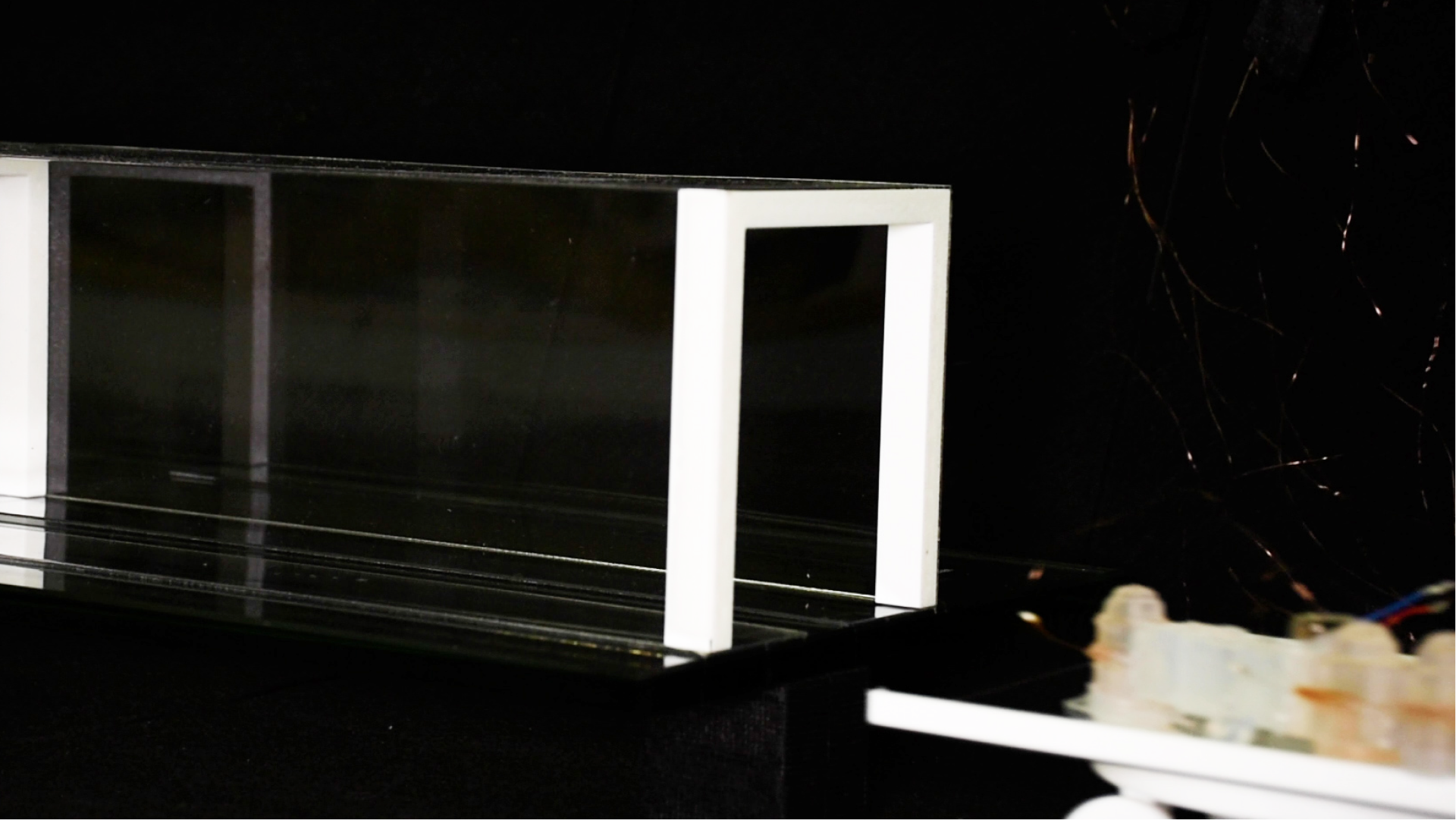

By coordinating these two functions under different task scenarios, the robot can perform multiple distinct behaviors, including remaining stationary in windy environments, stepping over flake samples (figure 1-4), picking up and transporting the samples (figure 5, 6), and attaching to an external movable carrier to assist traveling (figure 7, 8). These behaviors might be used in applications, such as to collect flake samples detached from hard-to-access windy pipes (e.g., contaminated or radioactive) and then facilitate equipment inspection and maintenance.
Fabrication of MorphingSkin
The first step in fabrication is to assemble the flexible EOP circuit. Here, two electrodes sandwich a piece of pump membrane and a TPU adhesion layer, and then are heat-pressed to bond and form the basic electroosmotic pump structure. Next, we coat the EOP circuit with a layer of stretchable material, such as silicone, to provide the continuous, stretchable middle layer. Here, we use masks on both sides to protect the pumping area from being coated. We also dispense glue to enhance the bonding between the circuit surface and the coating silicone. After coating, we fabricate the elastic shell components for outputs and reservoirs. These shells can be made with silicone injection molding and bonded to the EOP layer with glue. For the last step, we use a needle to inject the working fluid and eliminate the air bubbles. After that, the device is completely fabricated, showing flexibility and stretchability.
Technical Evaluation

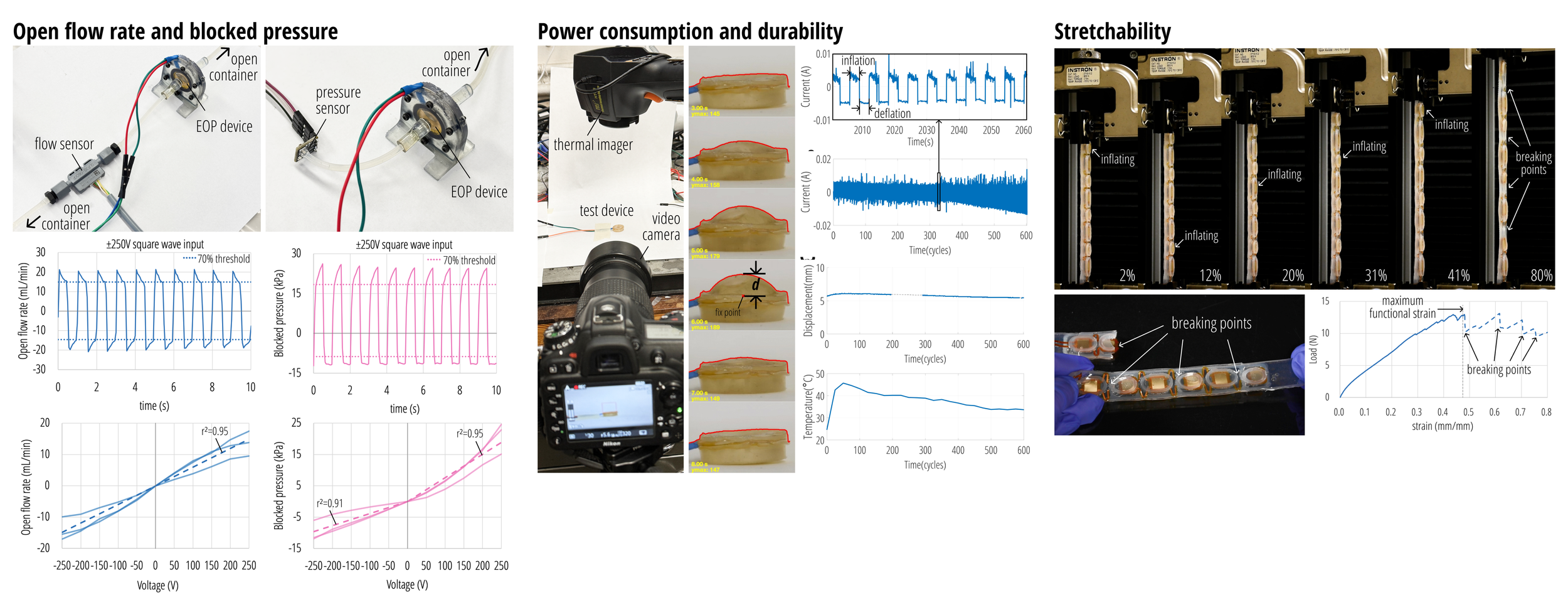

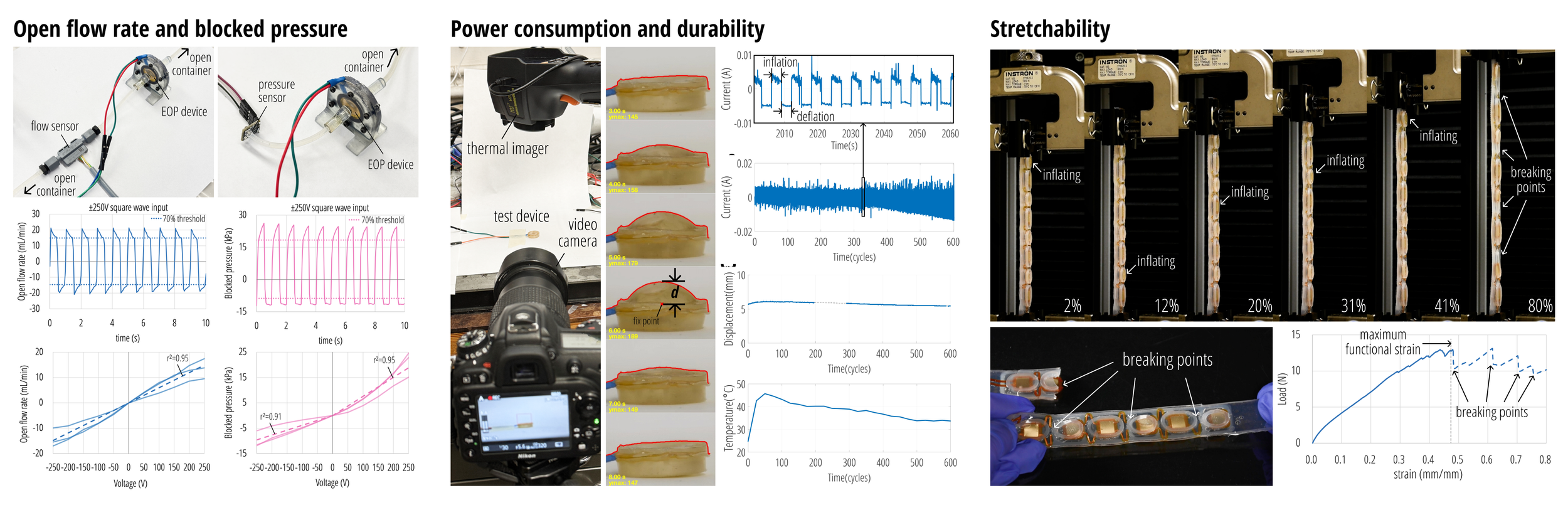

In this project, we also evaluated a few technical performances of the MorphingSkin devices, including the open flow rate and blocked pressure of the electroosmotic pumps, the power consumption and durability of a typical actuator, and the stretchability of a linear strip-like device. For more details, please refer to our paper.
